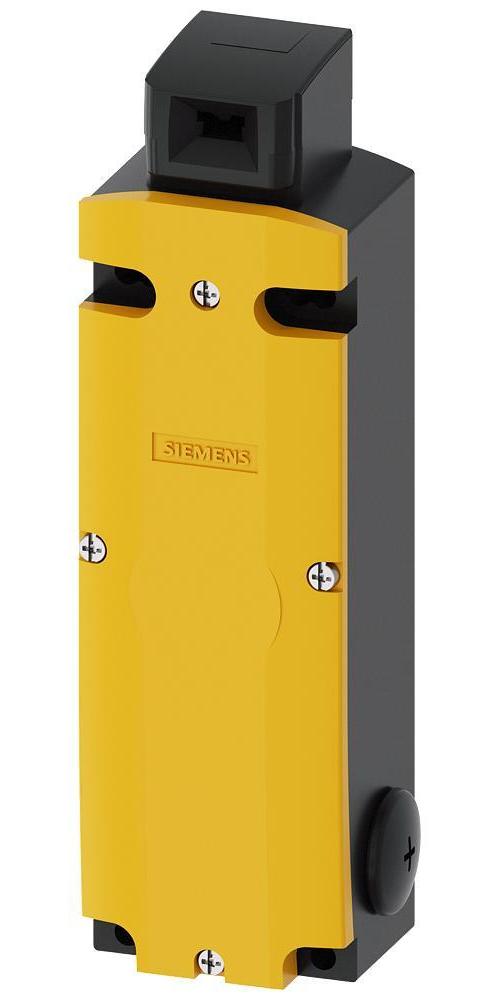

Siemens 3SE5312-0SB12 Interlock Switch
Part Number # 3SE5312-0SB12
SKU # 2255423
Siemens 3SE5312-0SB12 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SE5312-0SB12 |
| SKU #: | 2255423 |
| Dimensions: | 54 mm L x 43.8 mm W x 184.1 mm H |
| Type: | Safety Position Solenoid Locked |
| UNSPSC: | 39122213 |
| UPC: | 00754554951454 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3SE5312-0SB12 Interlock Switch
Brand: Siemens
Part Number: 3SE5312-0SB12
Siemens Interlock Switch, Safety Position Solenoid Locked, Series: 3SE5, 115 VAC, 6 A, 3 Pole, Threaded/Screw Fixing Mount, IP66/IP67, Metal, 54 mm L x 43.8 mm W x 184.1 mm H
Additional Description: SIEM-3SE5312-0SB12 INTERLOCK SW,SOLENOID LOCK,115VAC
Catalog Description: Safety position switch with tumbler Locking force 2600 N 5 directions of approaches Solenoid-locked Magnet voltage 115 V AC Monitoring actuator 2 NC/1 NO Monitoring magnet 2 NC/1 NO Supplied without actuator. Actuator 3SE5000-0AV0. please order separately
3SE5312-0SB12 Item Features
- Special design housing, cathodic immersion coating enclosure
- Screw fixing mounting
- Screw type terminal
- Magnetic field locked
- -25 to 60 deg C operating, -40 to 80 deg C storage
- 2NC-1NO contact configuration
- 2600 N locking force
3SE5312-0SB12 Standards
CCC Certified|CE Certified|CSA Certified|UL ListedSKU #2255423Part Number #3SE5312-0SB12UNSPSC39122213UPC00754554951454
