Part Number # 3SE5312-0SD11
SKU # 2304791
3SE5312-0SD11

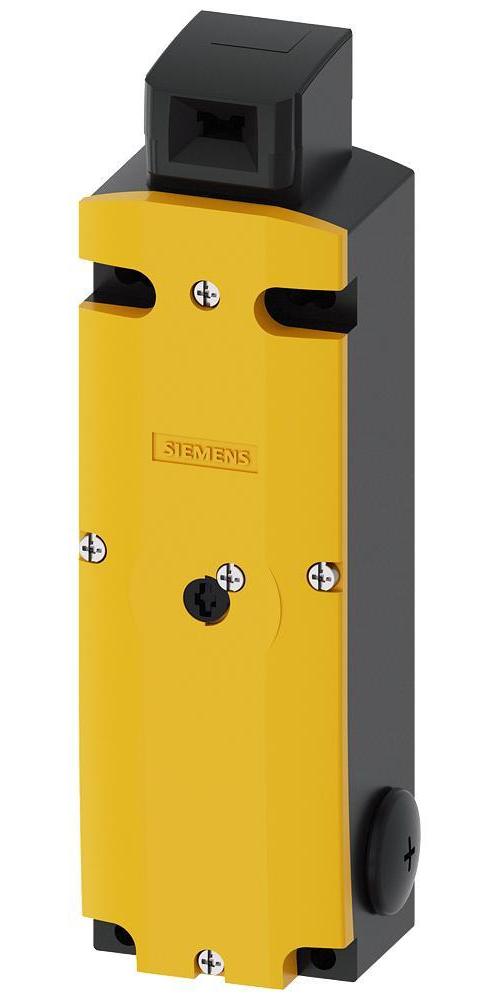

Siemens 3SE5312-0SD11 SIRIUS Interlock Switch
Part Number # 3SE5312-0SD11
SKU # 2304791
Siemens 3SE5312-0SD11 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SE5312-0SD11 |
| SKU #: | 2304791 |
| Amperage Rating: | 3, 3 A |
| Country of origin: | DE |
| Dimensions: | 54 mm L x 43.8 mm W x 184.1 mm H |
| Enclosure Type: | IP66/IP67 |
| Material: | Metal |
| Mounting type: | Threaded |
| Series: | 3SE5 |
| Type: | Safety Position |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122213 |
| UPC: | 00754554951478 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3SE5312-0SD11 SIRIUS Interlock Switch
Brand: Siemens
Part Number: 3SE5312-0SD11
Siemens SIRIUS Interlock Switch, Safety Position, Series: 3SE5, 24 VDC, 3 A, Threaded Mounting, IP66/IP67 Enclosure, Metal, 54 mm L x 43.8 mm W x 184.1 mm H Dimensions
Additional Description: SIEM-3SE5312-0SD11 INTERLOCK SW,MECH LOCK_SOL UNLOCK,24VDC
Catalog Description: Safety position switch with tumbler locking force 2600 n 5 directions of approaches spring-locked auxiliary release on front magnet voltage 24 V DC monitoring actuator 2 nc/1 no monitoring magnet 2 nc/1 no supplied without actuator. Actuator 3SE50000AV0 , order separately
3SE5312-0SD11 Item Features
- Special design housing, cathodic immersion coating enclosure
- Screw fixing mounting
- Screw type terminal
- Spring locked
- -25 to 60 deg C operating, -40 to 80 deg C storage temperature
- 2NC-1NO contact configuration
- 2600 N locking force
3SE5312-0SD11 Standards
CCC Certified|CSA Certified|CE Certified|UL ListedSKU #2304791Part Number #3SE5312-0SD11UNSPSC39122213UPC00754554951478
Image provided may only be a representation of final product and may include optional equipment
