Part Number # 3SE5312-1SD11
SKU # 2316736
Image provided may only be a representation of
final product and may include optional equipment
3SE5312-1SD11

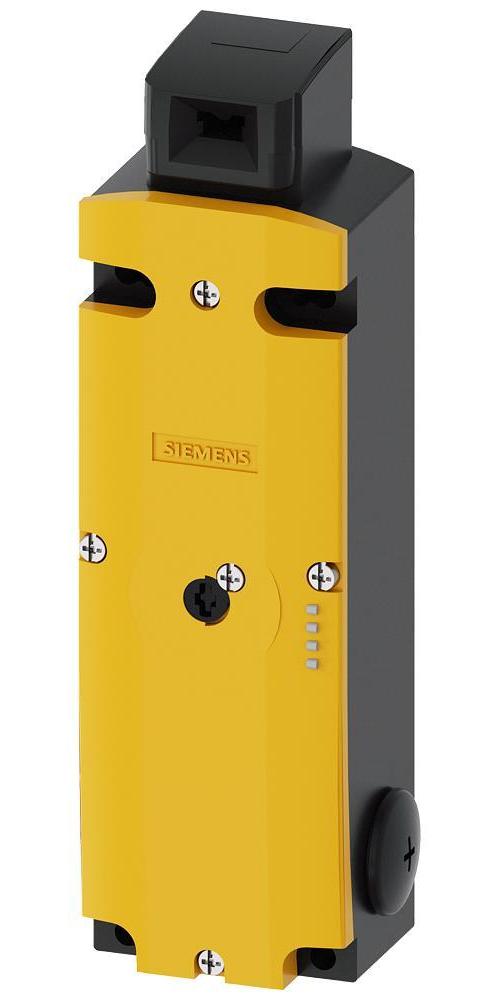

Siemens 3SE5312-1SD11 Interlock Switch
Part Number # 3SE5312-1SD11
SKU # 2316736
Siemens 3SE5312-1SD11 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SE5312-1SD11 |
| SKU #: | 2316736 |
| Amperage Rating: | 3, 3 A |
| Country of origin: | DE |
| Dimensions: | 54 mm L x 43.8 mm W x 184.1 mm H |
| Enclosure Type: | IP66/IP67 |
| Material: | Metal |
| Mounting type: | Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122213 |
| UPC: | 00754554951638 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3SE5312-1SD11 Interlock Switch
Brand: Siemens
Part Number: 3SE5312-1SD11
Siemens Interlock Switch, 24 VDC, 3 A, Threaded Mounting, IP66/IP67 Enclosure, Metal, 54 mm L x 43.8 mm W x 184.1 mm H Dimensions
Additional Description: SIEM-3SE5312-1SD11 INTERLOCK SW,MECH LK_SOL UNLK,24VDC,LED
Catalog Description: Safety position switches with solenoid interlocking lock. force 2600n,5 appr. dir. metal housing,3x(m20x1.5) spring-locked, auxiliary release on front magnet voltage 24V DC, monitor. of actuator 2NC/1NO, monitor. of magnet 2NC/1NO leds yellow/green
3SE5312-1SD11 Item Features
- Special design housing, cathodic immersion coating enclosure
- Screw fixing mounting
- Screw type terminal
- Spring locked
- -25 to 60 deg C operating, -40 to 80 deg C storage
- 2NC-1NO contact configuration
- 2600 N locking force
- Yellow/green LEDs
3SE5312-1SD11 Standards
CCC Certified|CSA Certified|CE Certified|UL ListedSKU #2316736Part Number #3SE5312-1SD11UNSPSC39122213UPC00754554951638
