Part Number # 3SE5312-1SE11
SKU # 2324654
Image provided may only be a representation of
final product and may include optional equipment
3SE5312-1SE11

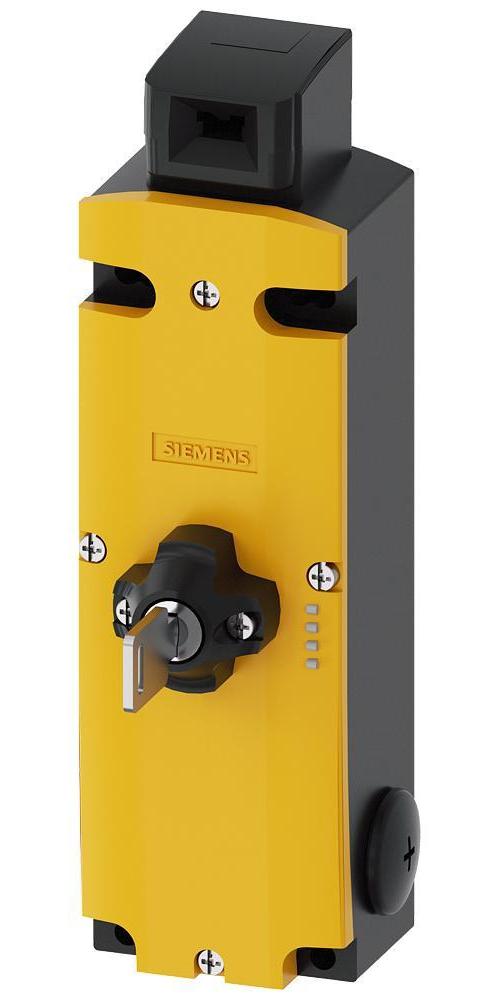

Siemens 3SE5312-1SE11 SIRIUS Interlock Switch
Part Number # 3SE5312-1SE11
SKU # 2324654
Siemens 3SE5312-1SE11 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SE5312-1SE11 |
| SKU #: | 2324654 |
| Amperage Rating: | 0.27/0.55/3/6, 0.27/0.55/3/6 A |
| Country of origin: | DE |
| Dimensions: | 54 mm W x 87 mm D |
| Enclosure Type: | IP66/IP67 |
| Material: | Metal |
| Mounting type: | Threaded |
| Series: | 3SE5 |
| Type: | Mechanical |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122213 |
| UPC: | 00754554951645 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3SE5312-1SE11 SIRIUS Interlock Switch
Brand: Siemens
Part Number: 3SE5312-1SE11
Siemens SIRIUS Interlock Switch, Mechanical, Series: 3SE5, 24/240 VAC, 24/125/250 VDC, 0.27/0.55/3/6 A, Threaded Mounting, IP66/IP67 Enclosure, Metal, Green/Yellow, 54 mm W x 87 mm D Dimensions
Additional Description: SIEM-3SE5312-1SE11 INTERLOCK SW,MECH LK_SOL UNLK,24VDC,LED
Catalog Description: Safety position switch with tumbler locking force 2600 n 5 directions of approaches spring-locked auxiliary release with lock magnet voltage 24 V DC monitoringactuator 2 nc/1 no monitoring magnet 2 nc/1 no led display yellow/green supplied without actuator. actuator 3SE5000-0av0. please order separately
3SE5312-1SE11 Item Features
- Positive opening according to IEC 6094751, Appendix K
- Tumbler locking force 2600 N 5 directions of approaches
- Monitoring actuator 2NC-1NO, monitoring magnet 2NC-1NO
- Without actuator
- 6 A at 24 VAC, 3 A at 240 VAC, 3 A at 24 VDC, 0.55 A at 125 VDC, 0.27 A at 250 VDC current rating
3SE5312-1SE11 Standards
UL Listed|EAC Certified|CSA Certified|CE Certified|CCC Certified|WEEE (2012/19/EU)|REACH Article No. 33|IEC 60947-5-1SKU #2324654Part Number #3SE5312-1SE11UNSPSC39122213UPC00754554951645
