Part Number # 3SE5322-0SD22
SKU # 2231990
Image Disclaimers Message
3SE5322-0SD22

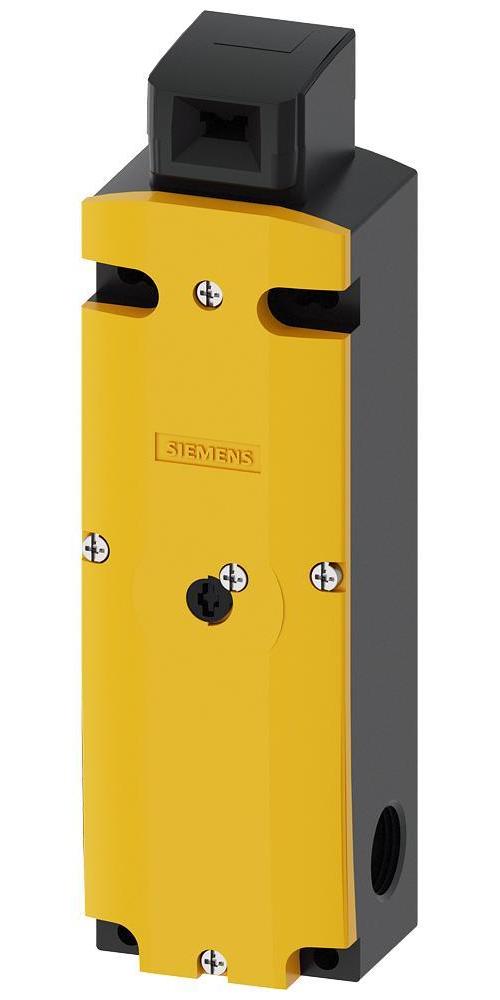

Siemens 3SE5322-0SD22 SIRIUS Interlock Switch
Part Number # 3SE5322-0SD22
SKU # 2231990
$483.50 / Each
Typical price:$635.00 / Each
Siemens 3SE5322-0SD22 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SE5322-0SD22 |
| SKU #: | 2231990 |
| Amperage Rating: | 0.27/0.55/3/6, 0.27/0.55/3/6 A |
| Country of origin: | DE |
| Dimensions: | 54 mm W x 94 mm D |
| Enclosure Type: | IP66/IP67 |
| Material: | Plastic |
| Mounting type: | Threaded |
| Series: | 3SE5 |
| Type: | Mechanical |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122213 |
| UPC: | 00754554949307 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$483.50 / Each
Typical price:$635.00 / Each
Quantity:
- Siemens SIRIUS Interlock Switch, Mechanical, Series: 3SE5, 24/240/115 VAC, 24/125/250 VDC, 0.27/0.55/3/6 A, Threaded Mounting, IP66/IP67 Enclosure, Plastic, 54 mm W x 94 mm D Dimensions
3SE5322-0SD22 Item Features
- Positive opening according to IEC 6094751, Appendix K
- Tumbler locking force 1300 N 5 directions of approaches
- Monitoring actuator 2NC-1NO, monitoring magnet 2NC-1NO
- Without actuator
- 6 A at 24 VAC, 3 A at 240 VAC, 3 A at 24 VDC, 0.55 A at 125 VDC, 0.27 A at 250 VDC current rating
3SE5322-0SD22 Standards
UL Listed|EAC Certified|CSA Certified|CE Certified|CCC Certified|WEEE (2012/19/EU)|REACH Article No. 33|IEC 60947-5-1SKU #2231990Part Number #3SE5322-0SD22UNSPSC39122213UPC00754554949307
