Siemens 3SE5322-1SB21 SIRIUS Interlock Switch
Part Number # 3SE5322-1SB21
SKU # 2351499
3SE5322-1SB21
Siemens 3SE5322-1SB21 SIRIUS Interlock Switch
Part Number # 3SE5322-1SB21
SKU # 2351499
Siemens 3SE5322-1SB21 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SE5322-1SB21 |
| SKU #: | 2351499 |
| UNSPSC: | 39122213 |
| UPC: | 00754554951959 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3SE5322-1SB21 SIRIUS Interlock Switch
Brand: Siemens
Part Number: 3SE5322-1SB21
Siemens SIRIUS Interlock Switch, Safety Position, Series: 3SE5, 24 V DC, 3 A, Threaded Mounting, IP66/IP67 Enclosure, Plastic, 54 mm L x 43.8 mm W x 184.1 mm H Dimensions
Additional Description: SIEM-3SE5322-1SB21 INTERLOCK SW,SOLENOID LOCK,24VDC,LED
Catalog Description: Safety position switch with tumbler locking force 1300 n 5 directions of approaches solenoid-locked magnet voltage 24 V DC monitoring actuator 2 nc/1 no monitoring magnet 2 nc/1 no led display yellow/green supplied without actuator. actuator 3SE5000-0av. please order separately
3SE5322-1SB21 Application
To restrict and prevent an unforeseen or intentional opening of protective doors, protective grilles or other covers as long as a dangerous situation is present3SE5322-1SB21 Item Features
- 6 A at 24 VAC, 3 A at 240 VAC, 3 A at 24 VDC, 0.55 A at 125 VDC, 0.27 A at 250 VDC
- Without actuator
- Magnetic field locked
- Screw type terminal
- Yellow/green LED
- Special design housing
- More safety through higher locking forces 1300 N with plastic enclosure, 2600 N with metal enclosure
- Screw fixing mounting
- 2-contact blocks each with three contacts as standard equipment, hence fewer versions needed
- -25 to 60 deg C operating, -40 to 80 deg C storage temperature
- 2NC-1NO contact configuration
- https://www.youtube.com/watch?v=FN7ZtBWVrPU
3SE5322-1SB21 Standards
CSA Certified|UL Listed|EAC ApprovedSKU #2351499Part Number #3SE5322-1SB21UNSPSC39122213UPC00754554951959

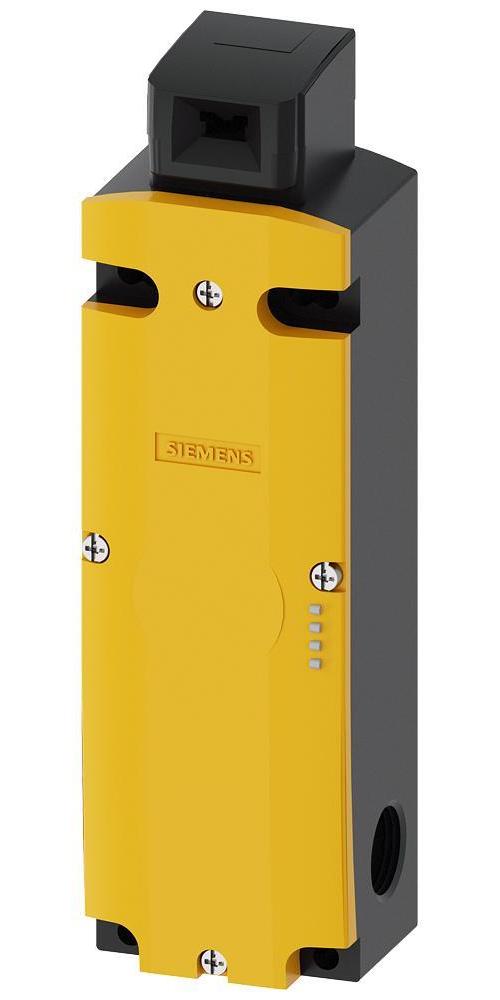

Image provided may only be a representation of final product and may include optional equipment
