- Escape release from the back and auxiliary release with lock from the front
- Positive opening according to IEC 6094751, Appendix K
- Tumbler locking force 1300 N 5 directions of approaches
- Monitoring actuator 2NC-1NO, monitoring magnet 2NC-1NO
- 6 A at 24 VAC, 3 A at 240 VAC, 3 A at 24 VDC, 0.55 A at 125 VDC, 0.27 A at 250 VDC current rating
Specifications
Brand: Siemens
Amperage Rating: 0.27/0.55/3/6 A
Color: Green/Yellow
Country of origin: DE
Dimensions: 54 mm W x 94 mm D
Enclosure Type: IP65/IP67
Material: Plastic
Mounting type: Threaded
Series: 3SE5
Type: Mechanical
Voltage Rating: 24 to 240 VAC/24 to 125 to 250 VDC, 24/240 VAC, 24/125/250 VDC
Manufacturer Name: Siemens
UNSPSC: 39122213
UPC: 00754554951980

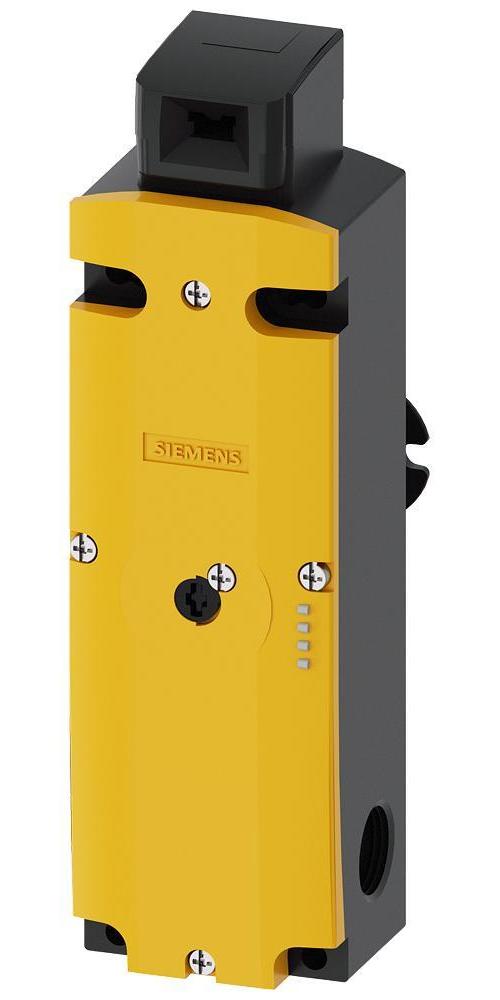

Siemens 3SE5322-1SG21 SIRIUS Interlock Switch
Siemens SIRIUS Interlock Switch, Mechanical, Series: 3SE5, 24/240 VAC, 24/125/250 VDC, 0.27/0.55/3/6 A, Threaded Mounting, IP65/IP67 Enclosure, Plastic, Green/Yellow, 54 mm W x 94 mm D Dimensions
Additional Description: SIEM-3SE5322-1SG21 INTERLOCK SW,MECH LK_SOL UNLK,24VDC,LED
Catalog Description: Safety position switch with tumbler locking force 1300 n 5 directions of approaches plastic enclosure, 3x(m20x1.5) spring-locked escape release from the rear and auxiliary release on front magnet voltage 24 V DC monitoring actuator 2 nc/1 no monitoring magnet 2 nc/1 no led display yellow/green supplied without actuator. actuator 3SE5000-0av0. please order separately
Item FeaturesFor 1/2 in NPT adaptors and cable glands
Item Features
Item FeaturesUL Listed|EAC Certified|CSA Certified|CE Certified|CCC Certified|WEEE (2012/19/EU)|REACH Article No. 33|IEC 60947-5-1
