Part Number # 3SE66263CA01
SKU # 2461295
3SE66263CA01
Siemens 3SE66263CA01
Part Number # 3SE66263CA01
SKU # 2461295
Siemens 3SE66263CA01 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SE66263CA01 |
| SKU #: | 2461295 |
| Contact Rating: | 400 mA at 30 V |
| Dimensions: | 13 mm L x 26 mm W x 36 mm H |
| Series: | 3SE66 |
| Suitable For Use With: | Right Door Hinge |
| Type: | 6-Pole Small Magnetically Operated |
| Connection type: | Latching |
| Material: | Plastic/Glass Fiber Reinforced Thermoplastic |
| UNSPSC: | 39121521 |
| UPC: | 00804766058516 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3SE66263CA01
Brand: Siemens
Part Number: 3SE66263CA01

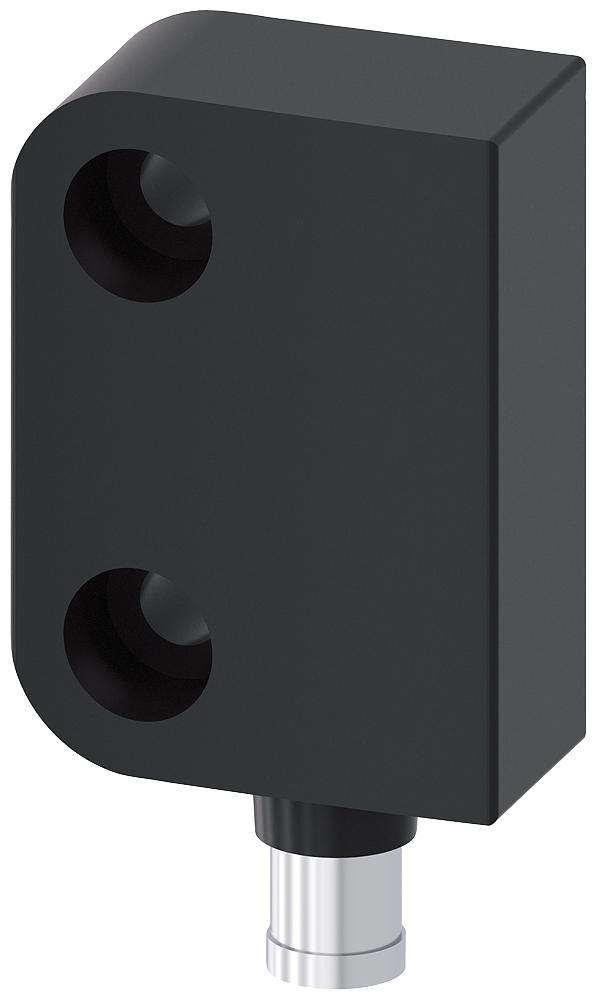

Siemens SIRIUS Contact Block, 6-Pole Small Magnetically Operated, Series: 3SE66, 1NO-1NC Contact Configuration, For Use With: Right Door Hinge, 400 mA at 30 V Contact, Latching Connection, IP67 Enclosure, -25 to 70 deg C, Plastic/Glass Fiber Reinforced Thermoplastic, 13 mm L x 26 mm W x 36 mm H Dimensions
Additional Description: SIEM-3SE66263CA01 MAG SW,RH HINGE,1NO/1NC/1NC,M8 6P
Catalog Description: MAGNETICALLY OPERATED SWITCH, CONT. BLOCK, RECTANGULAR SMALL 26X36MM, FOR DOOR HINGE RIGHT, CONTACTS SAFETY CONTACTS 1NO+1NC, SIGNALING CONTACTS 1NC, WITH 8MM CATCH CONNECTION, CONNECTOR 6-POLE, WITHOUT LED, MATCHING SWITCHING MAGNET 3SE6714-3CA OR OFFSET BY 90 DEGREES 3SE6724-3CA
3SE66263CA01 Item Features
- Without LED
3SE66263CA01 Standards
UL Listed|EAC Certified|RCM Certified|WEEE 2012/19/EUSKU #2461295Part Number #3SE66263CA01UNSPSC39121521UPC00804766058516
Image provided may only be a representation of final product and may include optional equipment
