Part Number # 3SK21221AA10
SKU # 2329570
3SK21221AA10

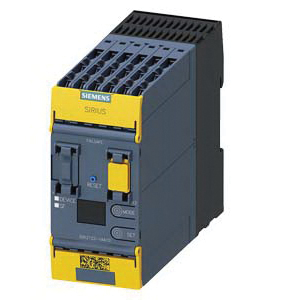

Siemens 3SK21221AA10 SIRIUS Safety Relay
Part Number # 3SK21221AA10
SKU # 2329570
Siemens 3SK21221AA10 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SK21221AA10 |
| SKU #: | 2329570 |
| Contact Rating: | 4 A at 24 V DC, 4 A at 24 VDC |
| Dimensions: | 100 mm H x 45 mm W x 124.5 mm D, 45 mm W x 124.5 mm D x 100 mm H |
| Type: | Basic Output Expansion, DC Operated |
| UNSPSC: | 39121521 |
| UPC: | 00804766163494 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3SK21221AA10 SIRIUS Safety Relay
Brand: Siemens
Part Number: 3SK21221AA10
SIRIUS Safety Relay, Basic Output Expansion, 7 A, 24 VDC Coil, 4 A at 24 VDC Contact, DIN Rail/Snap-On/Threaded Mounting, Screw Terminal, IP20 Enclosure, -25 to 60 deg C, 100 mm H x 45 mm W x 124.5 mm D Dimensions
Additional Description: SIEM-3SK21221AA10 SAFETY RELAY,20 F-DI,4 F-DQ,24VDC, SCREW
Catalog Description: SIRIUS safety relay basic unit 3SK2 series 20 f-di, 4 f-dq, 2 dq, 24 V DC parameterizable via SIRIUS safety es width 45mm screw terminals up to sil3 (iec 61508) up to performance level e (iso 13849-1) 3sk1 output expansions and 3rm1 fail-safe motor starter connectable via device connector
3SK21221AA10 Application
For used primarily in autonomous and more complex safety applications3SK21221AA10 Item Features
- Up to six fail-safe, independent shutdown functions
- Flexible in use thanks to software parameterization
- Powerful semiconductor outputs
- User friendly diagnostics using diagnostics display and configuring software
- 2 A at 24 VDC DC-13 contact rating
3SK21221AA10 Standards
CSA Certified|UL Listed|EAC Approved|CE Certified|IEC 61508|IEC 62061|EN ISO 13849-1|RoHS CompliantSKU #2329570Part Number #3SK21221AA10UNSPSC39121521UPC00804766163494
Image provided may only be a representation of final product and may include optional equipment
