Part Number # 3SU10001BD100AA0
SKU # 2448007
3SU10001BD100AA0
Siemens 3SU10001BD100AA0
Part Number # 3SU10001BD100AA0
SKU # 2448007
Siemens 3SU10001BD100AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SU10001BD100AA0 |
| SKU #: | 2448007 |
| Bezel/Housing: | Plastic |
| Enclosure Type: | NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K |
| Number of Positions: | 2 |
| Operator Type: | Mushroom Head |
| Series: | 3SU10 |
| Size: | 22 mm |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Type: | Round |
| Country of origin: | CN |
| Material: | Plastic |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122216 |
| UPC: | 00804766062391 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3SU10001BD100AA0
Brand: Siemens
Part Number: 3SU10001BD100AA0
SIRIUS Non-Illuminated Pushbutton, Round, 22 mm, 40 mm, Momentary Contact Mode, Mushroom Head Operator, 2 Positions, Bezel/Housing: Plastic, Screw Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K, Plastic, Black, Black, Environmental Conditions: -25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity
Additional Description: SIEM-3SU10001BD100AA0 PUSHBUTTON, MOM, BLK, MH CAP O40MM
Catalog Description: Mushroom pushbutton, 22mm, round, plastic, black, 40mm, momentary contact type
3SU10001BD100AA0 Application
For use in extreme environments, standard industrial and operation in marine applications3SU10001BD100AA0 Item Features
- Direct connection of the enclosure to AS-interface or IO-Link
- Direct connection in the control cabinet to PROFINET, IO-Link or AS-interface
- Can be integrated easily via TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- Media resistance (chemicals) thanks to solid stainless steel and high grade plastics
- Mechanical endurance of 10 x 10^6 operating cycles
- Reliable, friction locked fixing with just one screw
- Design stability according to use
- Simple geometry for mounting holes
- Without module and holder
3SU10001BD100AA0 Standards
CSA Certified|UL Listed|EAC Certified|CE Certified|ABS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL Approved|IEC 60947-1|IEC 60947-5-1|IEC 60947-5-5|EN 60947-1|EN 60947-5-1|EN 60947-5-5|WEEE 2012/19/EUSKU #2448007Part Number #3SU10001BD100AA0UNSPSC39122216UPC00804766062391

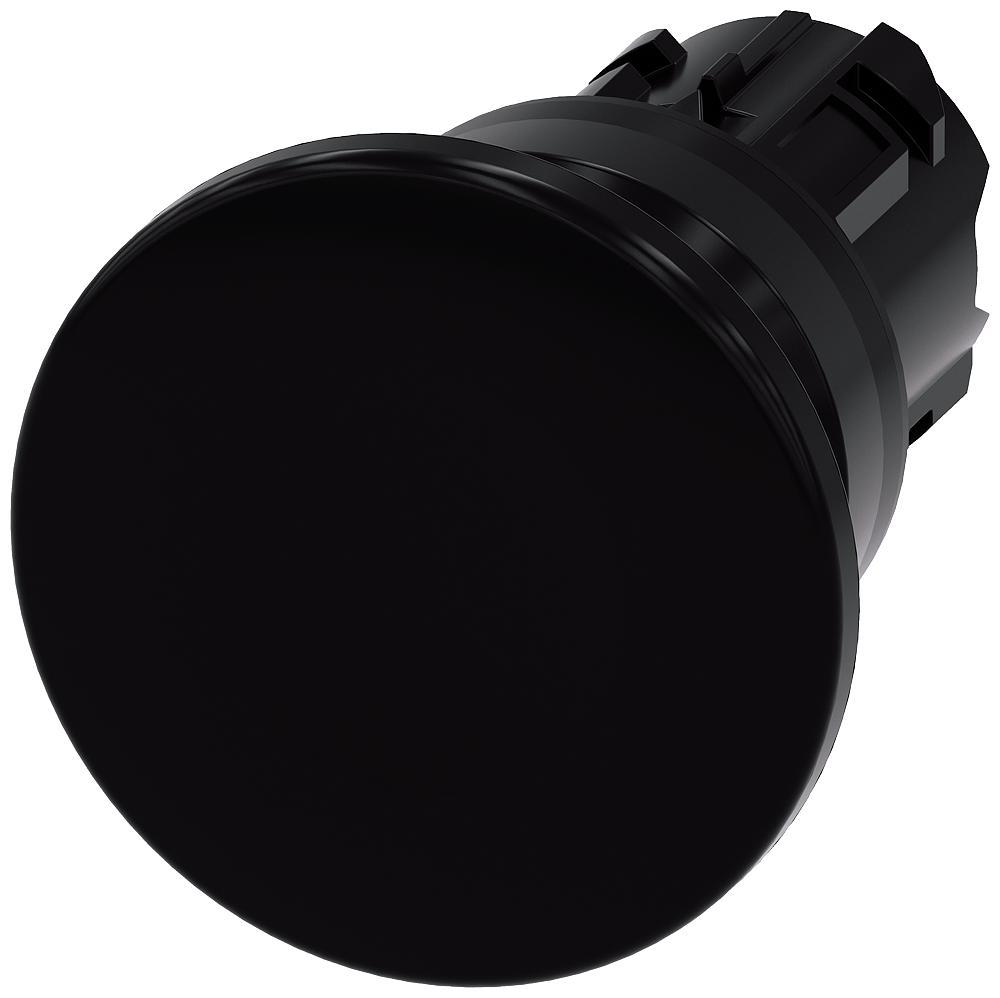

Image provided may only be a representation of final product and may include optional equipment
