Part Number # 3SU10011BA200AA0
SKU # 2362608
Image Disclaimers Message
3SU10011BA200AA0

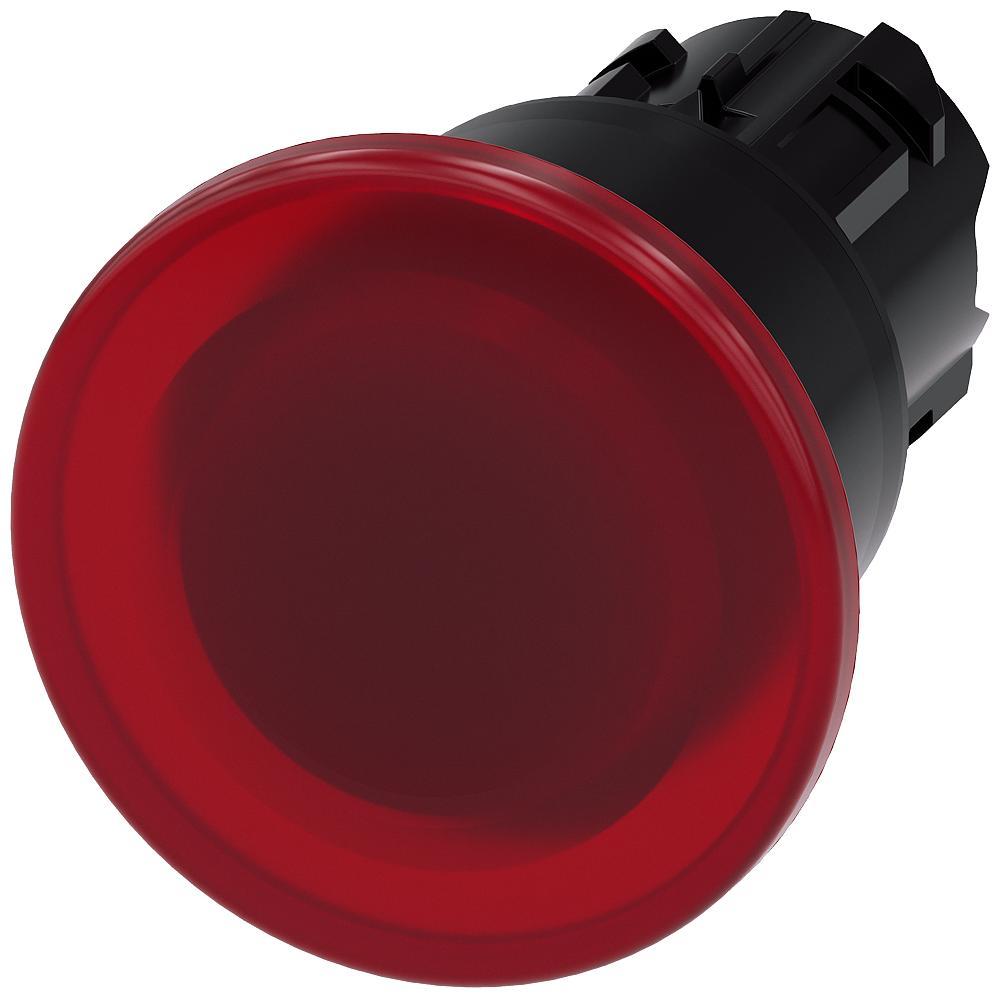

Siemens 3SU10011BA200AA0 SIRIUS ACT Illuminated Push-Pull Operator
Part Number # 3SU10011BA200AA0
SKU # 2362608
$31.50 / Each
Typical price:$63.00 / Each
Siemens 3SU10011BA200AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SU10011BA200AA0 |
| SKU #: | 2362608 |
| Bezel/Housing: | Plastic |
| Enclosure Type: | NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K |
| Environmental Conditions: | -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 95% Relative Air Humidity |
| Finish: | Black |
| Operator Type: | Latching/Pull-Unlatch/Mushroom Head Pushbutton, Latching/Pull-to-Unlatch/Mushroom Head Pushbutton, Mushroom Head |
| Series: | 3SU10 |
| Size: | 22, 22 mm, 22 mm, 40 mm |
| Temperature Rating (Degrees F): | -25 to 70, -25 to 70 deg C |
| Type: | 2-Position Round, Round |
| Color: | Black/Red, Red |
| Country of origin: | CN |
| Material: | Plastic |
| Mounting type: | Front Plate |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122216 |
| UPC: | 00804766063923 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$31.50 / Each
Typical price:$63.00 / Each
Quantity:
- Siemens SIRIUS ACT Illuminated Push-Pull Operator, 2-Position Round, Series: 3SU10, 22 mm Size, Mushroom Head Operator, Bezel/Housing: Plastic, NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K Enclosure, Front Plate Mounting, -25 to 70 deg C, Plastic, Black/Red
3SU10011BA200AA0 Application
For use in extreme environments, standard industrial and operation in marine applications3SU10011BA200AA0 Item Features
- Direct connection of the enclosure to AS-interface or IO-Link
- Direct connection in the control cabinet to PROFINET, IO-Link or AS-interface
- Can be integrated easily via TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- Media resistance (chemicals) thanks to solid stainless steel and high grade plastics
- Mechanical endurance of 10 x 10^6 operating cycles
- Reliable, friction locked fixing with just one screw
- Design stability according to use
- Simple geometry for mounting holes
- Without module and holder
3SU10011BA200AA0 Standards
CSA Certified|UL Listed|EAC Certified|CE Certified|ABS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL Approved|IEC 60947-1|IEC 60947-5-1|EN 60947-1|EN 60947-5-1|WEEE 2012/19/EUSKU #2362608Part Number #3SU10011BA200AA0UNSPSC39122216UPC00804766063923
