Part Number # 3SU10510BB300AA0
SKU # 2455674
Image Disclaimers Message
3SU10510BB300AA0

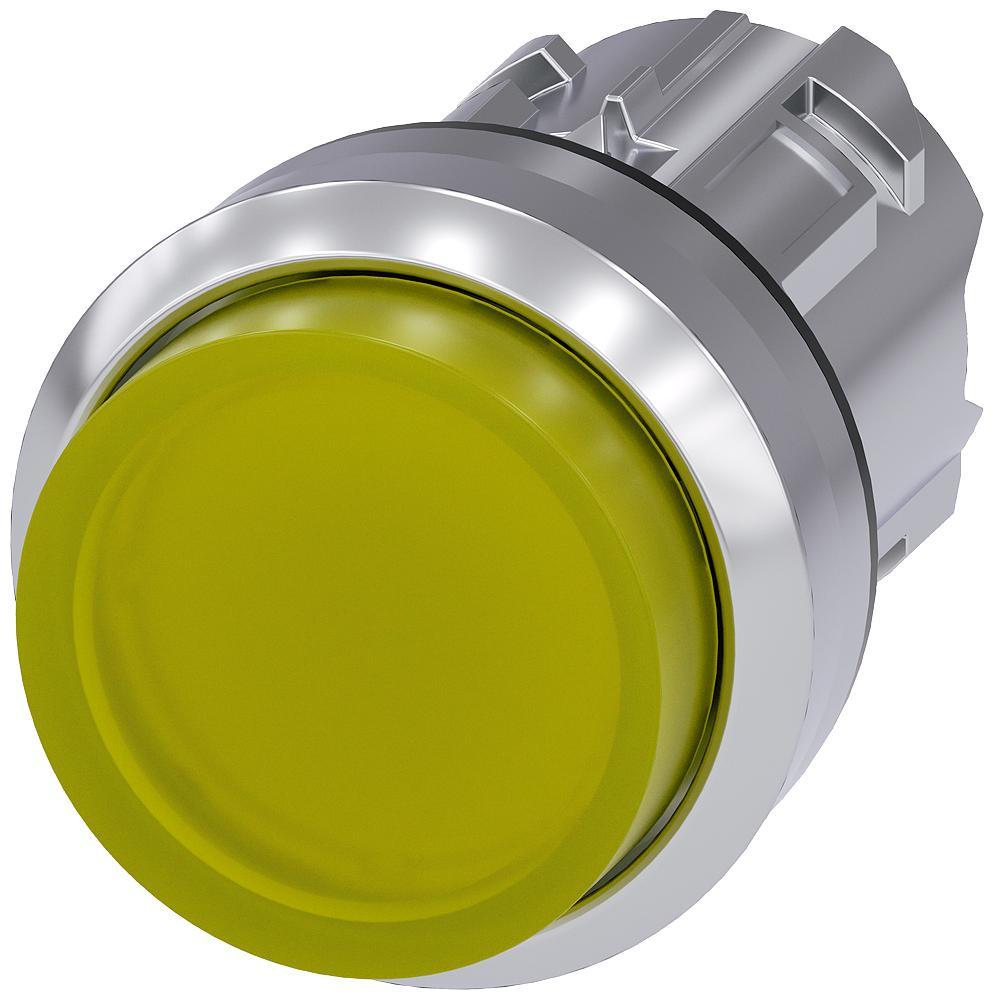

Siemens 3SU10510BB300AA0
Part Number # 3SU10510BB300AA0
SKU # 2455674
$13.16 / Each
Typical price:$27.10 / Each
Siemens 3SU10510BB300AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SU10510BB300AA0 |
| SKU #: | 2455674 |
| Bezel/Housing: | Metal |
| Enclosure Type: | NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K |
| Finish: | Shiny |
| Operator Type: | Raised |
| Series: | 3SU10 |
| Size: | 22 mm |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Type: | Round |
| Color: | Silver/Yellow |
| Country of origin: | CN |
| Material: | Plastic |
| Mounting type: | Front Plate |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122216 |
| UPC: | 00804766068614 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$13.16 / Each
Typical price:$27.10 / Each
Quantity:
- Siemens SIRIUS ACT Illuminated Pushbutton Operator, Round, Series: 3SU10, 22 mm, Momentary Contact Mode, Raised Operator, Bezel/Housing: Metal, NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K, Front Plate Mount, -25 to 70 deg C, Plastic, Shiny, Silver/Yellow
3SU10510BB300AA0 Application
For use in extreme environments, standard industrial and operation in marine applications3SU10510BB300AA0 Item Features
- Direct connection of the enclosure to AS-interface or IO-Link
- Direct connection in the control cabinet to PROFINET, IO-Link or AS-interface
- Can be integrated easily via TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- Media resistance (chemicals) thanks to solid stainless steel and high grade plastics
- Mechanical endurance of 10 x 10^6 operating cycles
- Reliable, friction locked fixing with just one screw
- Design stability according to use
- Simple geometry for mounting holes
- Without module and holder
3SU10510BB300AA0 Standards
CSA Certified|UL Listed|EAC Certified|CE Certified|ABS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL Approved|IEC 60947-1|IEC 60947-5-1|EN 60947-1|EN 60947-5-1|WEEE 2012/19/EUSKU #2455674Part Number #3SU10510BB300AA0UNSPSC39122216UPC00804766068614
