Brand: Siemens

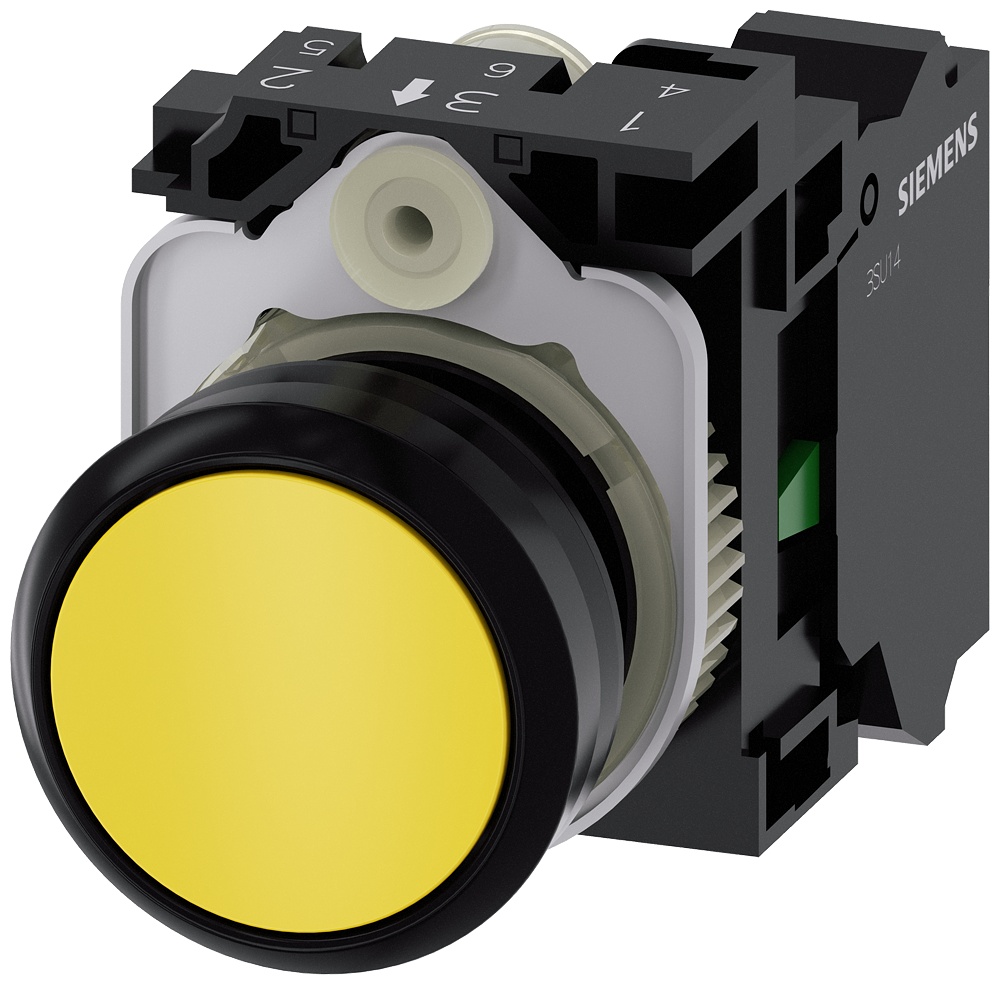

Siemens 3SU11000AB303BA0 Sirius Act Non-Illuminated Pushbutton
Image Disclaimers Message
Brand: Siemens
Siemens 3SU11000AB303BA0 Sirius Act Non-Illuminated Pushbutton
Brand: Siemens
Siemens 3SU11000AB303BA0 Sirius Act Non-Illuminated Pushbutton
Part #:3SU11000AB303BA0
SKU #: 2399569
$23.74/EA
Key Features
Part #:3SU11000AB303BA0
SKU #: 2399569
Brand: Siemens
Bezel/Housing: Plastic
Contact Configuration: 1NO
Enclosure Type: NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K
Environmental Conditions: -25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity
Operator Type: Flat Button
$23.74/EA
- Rugged and durable, even in a tough environment, thanks to IP69K protection (including IP66, IP67, IP69)
- High media resistance, for example, to oils, aggressive vapors and caustic solutions
- Easy to operate, thanks to improved haptic properties and illumination
- Fast, single handed installation thanks to retentive actuator function
- Twist prevention integrated into patented holder design
- Alignment arrows and distinct module slots for reliable connection
- No special tools required, simple size 2 screwdriver
- Communication solutions - AS-interface, IO-Link or PROFINET/PROFIsafe
- Can be integrated easily via TIA portal
- Self-holding function of the actuator when mounting
- Stackable contact modules
- Components can be mounted with holder removed
- Mechanical endurance of 10 x 10^6 operating cycles
- Reliable, friction locked fixing with just one screw
- Design stability according to use
- Simple geometry for mounting holes
Specifications
Brand: Siemens
Bezel/Housing: Plastic
Contact Configuration: 1NO
Enclosure Type: NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K
Environmental Conditions: -25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity
Operator Type: Flat Button
Series: 3SU11
Size: 22 mm
Terminal Type: Spring
Type: Complete Round
Color: Black/Yellow
Connection type: Solder Pin
Contact type: Silver Alloy
Country of origin: DE
Material: Plastic
Mounting type: Front Plate/Panel
Manufacturer Name: Siemens
UNSPSC: 39122216
UPC: 00804766070228
Item FeaturesFor use in extreme environments, standard industrial and operation in marine applications
Item Features
Item FeaturesUL Listed|CSA Certified|EAC Certified|CE Certified|CCC Certified|IEC 60947-1|EN 60947-1|IEC 60947-5-1|EN 60947-5-1|ABS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL Approved|WEEE 2012/19/EU
