Part Number # 3SU11002BL603LA0
SKU # 2410097
Image Disclaimers Message
3SU11002BL603LA0

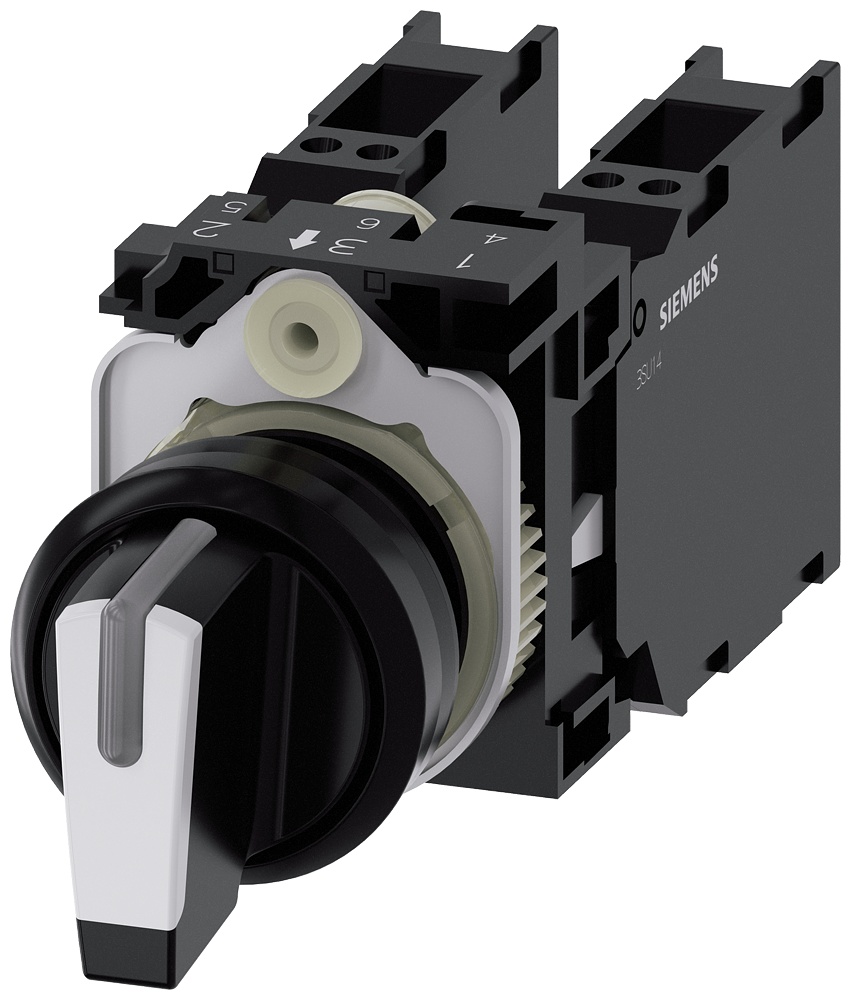

Siemens 3SU11002BL603LA0 Sirius Act Selector Switch
Part Number # 3SU11002BL603LA0
SKU # 2410097
$83.74 / Each
Typical price:$167.50 / Each
Siemens 3SU11002BL603LA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SU11002BL603LA0 |
| SKU #: | 2410097 |
| Bezel/Housing: | Plastic |
| Contact Configuration: | 2NO-2NC |
| Enclosure Type: | NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K |
| Environmental Conditions: | -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 95% Relative Humidity |
| Number of Positions: | 3 |
| Operator Type: | Latching/Short Lever, Short Lever |
| Series: | 3SU11 |
| Size: | 22 mm |
| Terminal Type: | Spring |
| Throw: | 2 x 45 deg |
| Type: | Non-Illuminated Round |
| Color: | Black/White |
| Country of origin: | DE |
| Material: | Plastic |
| Mounting type: | Surface |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122216 |
| UPC: | 00804766474231 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$83.74 / Each
Typical price:$167.50 / Each
Quantity:
- Siemens SIRIUS ACT Selector Switch, Non-Illuminated Round, Series: 3SU11, 22 mm Size, 2NO-2NC Contact Configuration, Short Lever Operator, 3 Positions, 2 x 45 deg Throw, Bezel/Housing: Plastic, Spring Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K Enclosure, Surface Mounting, Plastic, Black/White, Environmental Conditions: -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 95% Relative Humidity
3SU11002BL603LA0 Item Features
- Direct connection of the enclosure to AS-interface or IO-link
- Direct connection in the control cabinet to PROFINET, IO-link or AS-interface
- Can be integrated easily via the TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- No special tools required, simple size 2 screwdriver (cross-tip DIN ISO 87641PZD1, flat-head DIN ISO 2380-1 A/B 1x4.5) is sufficient
- (2) 45 deg (10:30 hr/12 hr/13:30 hr)
3SU11002BL603LA0 Standards
WEEE 2012/19/EU|CCC Certified|CSA Certified|UL Listed|EAC Certified|CE Certified|ABS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL ApprovedSKU #2410097Part Number #3SU11002BL603LA0UNSPSC39122216UPC00804766474231
