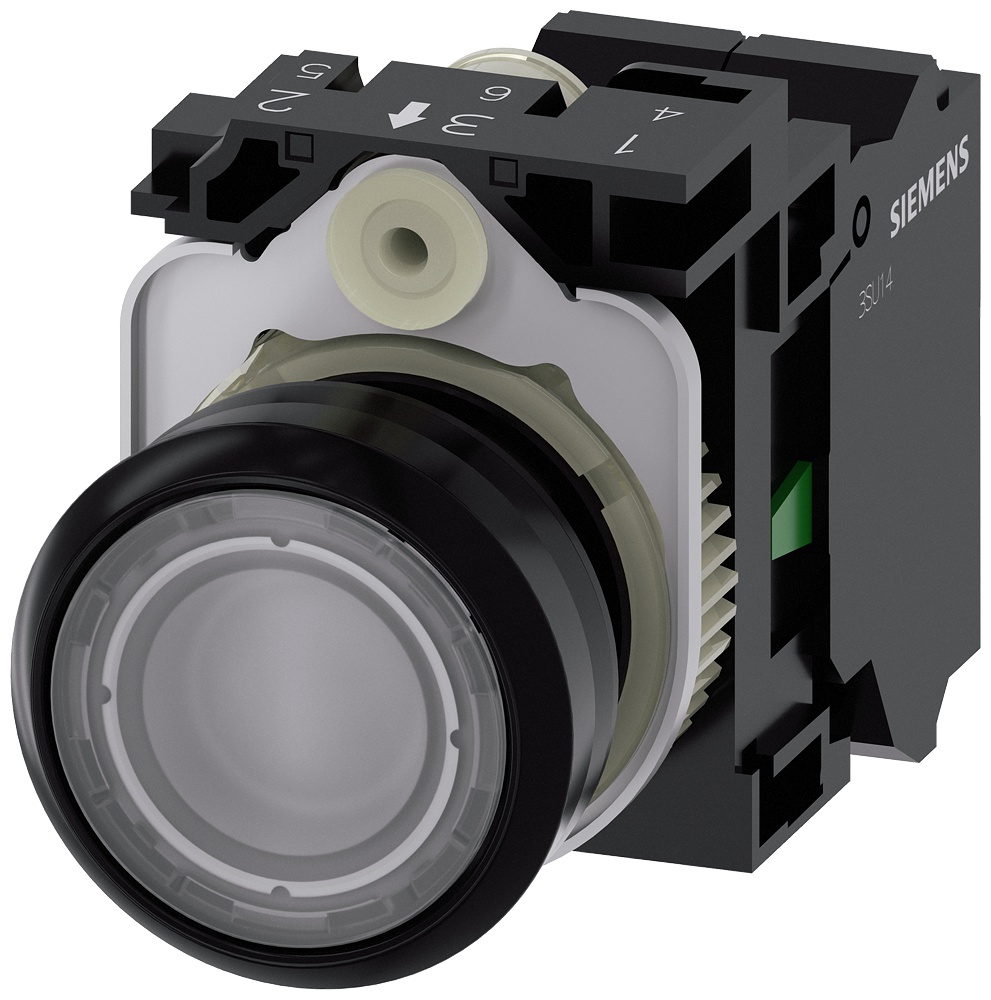

Siemens 3SU11020AB703BA0 Sirius Act Illuminated Pushbutton
Siemens 3SU11020AB703BA0 Sirius Act Illuminated Pushbutton
Part #:3SU11020AB703BA0
SKU #: 2417236
Key Features
Part #:3SU11020AB703BA0
SKU #: 2417236
Brand: Siemens
Bezel/Housing: Plastic
Contact Configuration: 1NO
Enclosure Type: NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K
Environmental Conditions: -25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity
Lamp Type: LED
- Rugged and durable, even in a tough environment, thanks to IP69K protection (including IP66, IP67, IP69)
- High media resistance, for example, to oils, aggressive vapors and caustic solutions
- Easy to operate, thanks to improved haptic properties and illumination
- Fast, single handed installation thanks to retentive actuator function
- Twist prevention integrated into patented holder design
- Alignment arrows and distinct module slots for reliable connection
- No special tools required, simple size 2 screwdriver
- Communication solutions - AS-interface, IO-Link or PROFINET/PROFIsafe
- Can be integrated easily via TIA portal
- Self-holding function of the actuator when mounting
- Stackable contact modules
- Components can be mounted with holder removed
- Mechanical endurance of 10 x 10^6 operating cycles
- Reliable, friction locked fixing with just one screw
- Design stability according to use
- Simple geometry for mounting holes
Siemens 3SU11020AB703BA0 Sirius Act Illuminated Pushbutton
SIRIUS Illuminated Pushbutton Unit, Round, 22 mm Size, 1NO Contact Configuration, Momentary Contact Mode, Flat Button Operator, LED Lamp, Spring Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K Enclosure, Plastic, Black, Clear, Environmental Conditions: -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 95% Relative Humidity
Additional Description: SIEM-3SU11020AB703BA0 ILLUMINATED PUSHBUTTON, MOM, CLR, FLUSH
Catalog Description: ILLUMINATED PUSHBUTTON, 22MM, ROUND, PLASTIC, CLEAR, FLAT BUTTON, MOMENTARY CONTACT TYPE, WITH HOLDER, 1NO, LED MODULE, WITH INTEGRATED LED 24V AC/DC, SPRING-TYPE TERMINAL
