Part Number # 3SU11026AA403AA0
SKU # 2370586
Image Disclaimers Message
Brand: Siemens
3SU11026AA403AA0

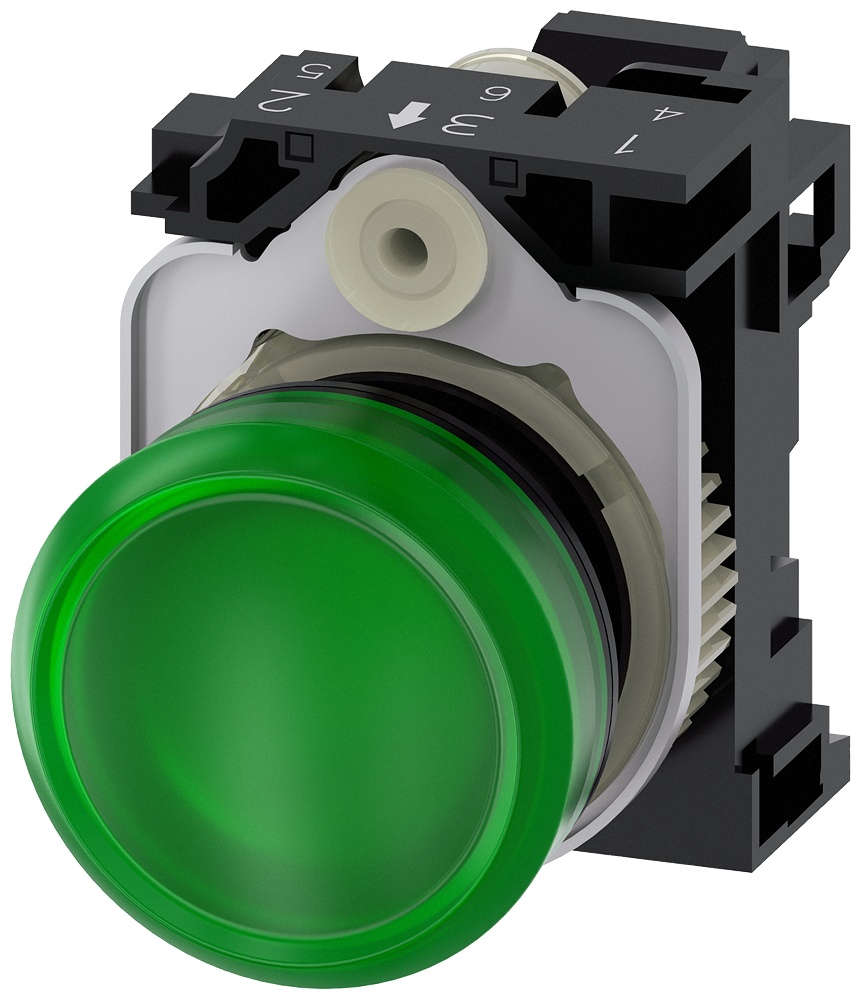

Siemens 3SU11026AA403AA0 SIRIUS ACT Indicator Light
Part Number # 3SU11026AA403AA0
SKU # 2370586
$53.50 / Each
Typical price:$107.00 / Each
Siemens 3SU11026AA403AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SU11026AA403AA0 |
| SKU #: | 2370586 |
| Amperage Rating: | 2, 2 A |
| Bezel/Housing: | Plastic |
| Enclosure Type: | NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K |
| Environmental Conditions: | -25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity |
| Lamp Type: | LED |
| Lens Color: | Green |
| Lens Material: | Plastic |
| Lens Type: | Smooth |
| Lumens: | 900 to 1400, 900 to 1400 mcd |
| Series: | 3SU11 |
| Size: | 22, 22 mm |
| Terminal Type: | Spring |
| Type: | Complete Illuminated |
| Color: | Black |
| Country of origin: | CZ |
| Mounting type: | Front Plate/Panel, Panel |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121534 |
| UPC: | 00804766070709 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$53.50 / Each
Typical price:$107.00 / Each
Quantity:
- Siemens SIRIUS ACT Indicator Light, Complete Illuminated, Series: 3SU11, 24 V AC/DC, 2 A, Smooth Lens, Green Lens, Plastic Lens, LED Lamp, 900 to 1400 mcd, Bezel/Housing: Plastic, Black, 22 mm, Round, Spring Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K, Panel Mount, Environmental Conditions: -25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity
3SU11026AA403AA0 Application
For use in extreme environments, standard industrial and operation in marine applications3SU11026AA403AA0 Item Features
- Rugged and durable, even in a tough environment, thanks to IP69K protection (including IP66, IP67, IP69)
- High media resistance, for example, to oils, aggressive vapors and caustic solutions
- Easy to operate, thanks to improved haptic properties and illumination
- Fast, single handed installation thanks to retentive actuator function
- Twist prevention integrated into patented holder design
- Alignment arrows and distinct module slots for reliable connection
- No special tools required, simple size 2 screwdriver
- Communication solutions - AS-interface, IO-Link or PROFINET/PROFIsafe
- Can be integrated easily via TIA portal
- Self-holding function of the actuator when mounting
- Stackable contact modules
- Components can be mounted with holder removed
- Mechanical endurance of 10 x 10^6 operating cycles
- Reliable, friction locked fixing with just one screw
- Design stability according to use
- Simple geometry for mounting holes
3SU11026AA403AA0 Standards
UL Listed|CSA Certified|EAC Certified|CE Certified|CCC Certified|IEC 60947-1|EN 60947-1|IEC 60947-5-1|EN 60947-5-1|ABS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL Approved|WEEE 2012/19/EUSKU #2370586Part Number #3SU11026AA403AA0UNSPSC39121534UPC00804766070709
