Part Number # 3SU12500EB500AA0
SKU # 2449372
3SU12500EB500AA0
Siemens 3SU12500EB500AA0
Part Number # 3SU12500EB500AA0
SKU # 2449372
Siemens 3SU12500EB500AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SU12500EB500AA0 |
| SKU #: | 2449372 |
| Bezel/Housing: | Metal |
| Enclosure Type: | NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K |
| Environmental Conditions: | -25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity |
| Finish: | Shiny |
| Operator Type: | Flat, Flat Button |
| Series: | 3SU12 |
| Size: | 22 mm |
| Type: | Compact Round |
| Connection type: | Solder Pin |
| Country of origin: | CN |
| Material: | Plastic |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122216 |
| UPC: | 00804766248733 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

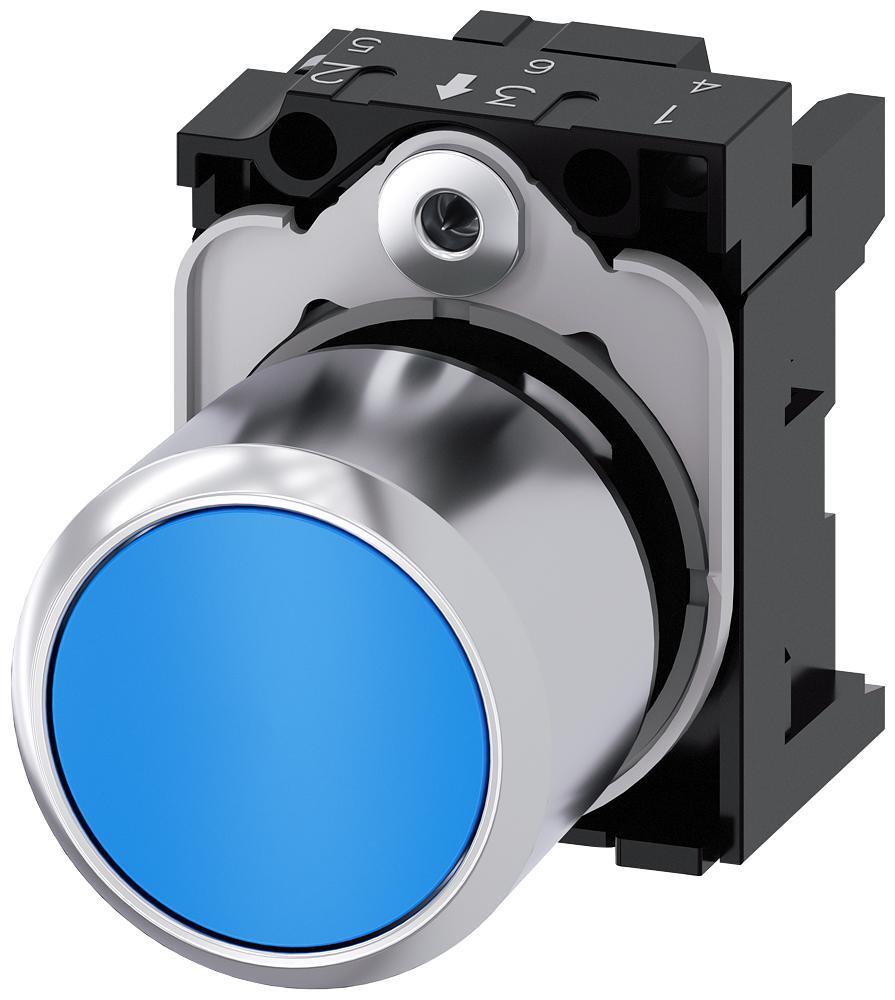

Siemens 3SU12500EB500AA0
Brand: Siemens
Part Number: 3SU12500EB500AA0
Siemens SIRIUS ACT Non-Illuminated Pushbutton, Compact Round, Series: 3SU12, 22 mm, Momentary Contact Mode, Flat Button Operator, Bezel/Housing: Metal, Solder Pin, NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K, Plastic, Shiny, Blue/Silver, Environmental Conditions: -25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity
Additional Description: SIEM-3SU12500EB500AA0 PUSHBUTTON. BLUE. EXTENDED STROKE
Catalog Description: Pushbutton. compact. with extended stroke (12mm). 22mm. round. metal. blue. flat button. momentary contact type. with holder
3SU12500EB500AA0 Application
For use in extreme environments, standard industrial and operation in marine applications3SU12500EB500AA0 Item Features
- Rugged and durable, even in a tough environment, thanks to IP69K protection (including IP66, IP67, IP69)
- High media resistance, for example, to oils, aggressive vapors and caustic solutions
- Easy to operate, thanks to improved haptic properties and illumination
- Fast, single handed installation thanks to retentive actuator function
- Twist prevention integrated into patented holder design
- Alignment arrows and distinct module slots for reliable connection
- No special tools required, simple size 2 screwdriver
- Communication solutions - AS-interface, IO-Link or PROFINET/PROFIsafe
- Can be integrated easily via TIA portal
- Self-holding function of the actuator when mounting
- Stackable contact modules
- Components can be mounted with holder removed
- Mechanical endurance of 10 x 10^6 operating cycles
- Reliable, friction locked fixing with just one screw
- Design stability according to use
- Simple geometry for mounting holes
- Without module and holder
3SU12500EB500AA0 Standards
UL Listed|CSA Certified|EAC Certified|CE Certified|IEC 60947-1|EN 60947-1|IEC 60947-5-1|EN 60947-5-1|WEEE 2012/19/EUSKU #2449372Part Number #3SU12500EB500AA0UNSPSC39122216UPC00804766248733
Image provided may only be a representation of final product and may include optional equipment
