Part Number # 3TC4417-0AM4
SKU # 2459065
3TC4417-0AM4
Siemens 3TC4417-0AM4
Part Number # 3TC4417-0AM4
SKU # 2459065
$1600.80 / Each
Typical price:$1624.00 / Each
Siemens 3TC4417-0AM4 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3TC4417-0AM4 |
| SKU #: | 2459065 |
| Coil Power Rating: | 10 W |
| Coil Voltage: | 220 V DC |
| Dimensions: | 85 mm H x 70 mm W x 145 mm D |
| Size: | SZ 1 |
| Type: | Type 3TC General Purpose |
| Wattage: | 5 kW |
| UNSPSC: | 39121521 |
| UPC: | 00754554185033 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1600.80 / Each
Typical price:$1624.00 / Each
Quantity:
- Siemens, 3TC4417-0AM4, Power Contactor, Type 3TC General Purpose, 220 V DC Coil, 32 A Maximum Load Current, 10 W Coil, 2 Pole, 5 kW Wattage, 2NO Contact Configuration, 4 Auxiliary Contacts, SZ 1 Size, Screw Terminal, IP00 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, DIN Rail/Snap-On/Threaded Mounting, 85 mm H x 70 mm W x 145 mm D Dimensions
3TC4417-0AM4 Application
Switching Motors Applications3TC4417-0AM4 Item Features
- These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
- 2.5 kW at 110 V, 5 kW at 220 V, 9 kW at 440/600 V, 4 kW at 750 V (DC-3, DC-5)
- 10 W (closing/holding) magnet coil at DC
3TC4417-0AM4 Standards
CSA Certified|UL Listed|RoHS Compliant|REACH Article 33|IEC 60947-4-1|EN 60947-1SKU #2459065Part Number #3TC4417-0AM4UNSPSC39121521UPC00754554185033

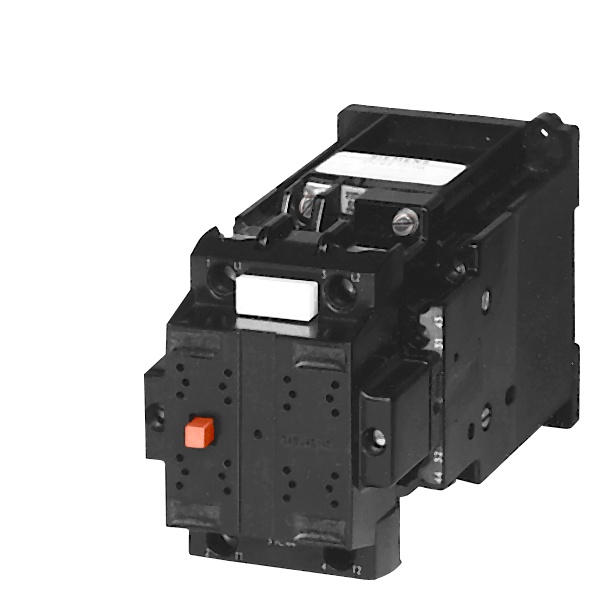

Image provided may only be a representation of final product and may include optional equipment
