3TC4417-0AP4

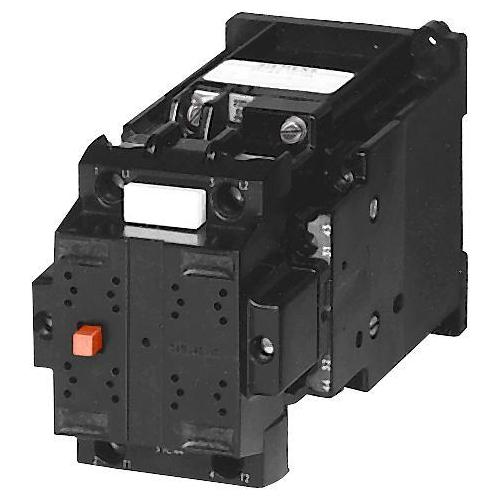

Siemens 3TC4417-0AP4 Contactor
Part Number # 3TC4417-0AP4
SKU # 2254328
Siemens 3TC4417-0AP4 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3TC4417-0AP4 |
| SKU #: | 2254328 |
| UNSPSC: | 39121521 |
| UPC: | 00754554185040 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3TC4417-0AP4 Contactor
Brand: Siemens
Part Number: 3TC4417-0AP4
Siemens Contactor, 230 V AC Coil, 32/29/21/7.5 A Maximum Load Current, 2 Pole, 2.5/5 kW Wattage, 2NO Contact Configuration, 4 Auxiliary Contacts, SZ 1 Size, Screw Terminal, IP00 Enclosure, -25 to 55 deg C Operating, DIN Rail/Snap-On/Threaded Mounting, 85 mm H x 70 mm W x 145 mm D Dimensions
Additional Description: SIEM-3TC4417-0AP4 CONTACTOR,DC OPER,SIZE 1,230V,2NO+2NC
Catalog Description: DC operation DC 230v auxiliary contacts 22 (2NO+2NC) DC-3 and 5,ratd.operat.curr.32a contactor, size 2, 2-pole
3TC4417-0AP4 Application
For switching and controlling DC motors as well as all other DC circuits3TC4417-0AP4 Item Features
- 2.5 kW at 110 V, 5 kW at 220 V, 9 kW at 440/600 V, 4 kW at 750 V (DC-3, DC-5)
- 10 W (closing/holding) magnet coil at DC
3TC4417-0AP4 Standards
CSA Certified|UL Listed|RoHS Compliant|REACH Article 33|IEC 60947-4-1|EN 60947-1SKU #2254328Part Number #3TC4417-0AP4UNSPSC39121521UPC00754554185040
Image provided may only be a representation of final product and may include optional equipment
