Part Number # 3TC4417-0AV4
SKU # 2400229
3TC4417-0AV4

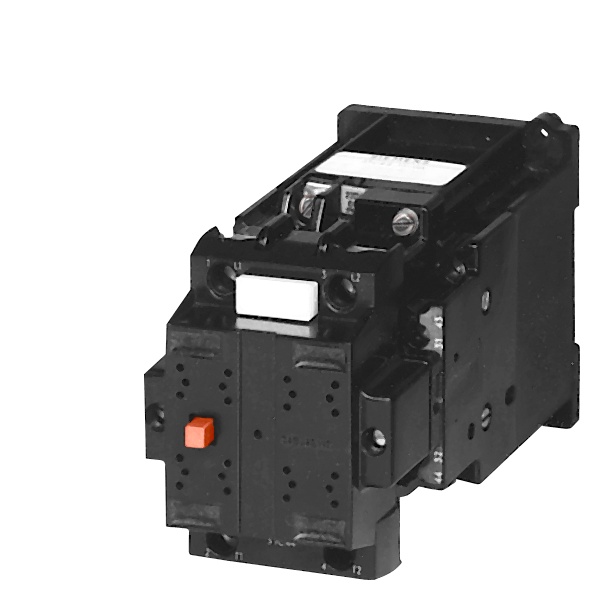

Siemens 3TC4417-0AV4 Contactor
Part Number # 3TC4417-0AV4
SKU # 2400229
Siemens 3TC4417-0AV4 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3TC4417-0AV4 |
| SKU #: | 2400229 |
| Coil Power Rating: | 10 W Closing/Holding |
| Coil Voltage: | 36 V DC, 36 VDC |
| Contact Configuration: | 2NO-2NC |
| Dimensions: | 85 mm H x 70 mm W x 45 mm D |
| Enclosure Type: | IP00 |
| Number of Poles: | 2 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 55 deg C |
| Series: | 3TC |
| Size: | 2 |
| Terminal Type: | Screw |
| Country of origin: | DE |
| Mounting type: | Snap-On/Surface/Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00754554735849 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3TC4417-0AV4 Contactor
Brand: Siemens
Part Number: 3TC4417-0AV4
Siemens Contactor, Series: 3TC, 36 VDC Coil, 32 A Maximum Load Current, 10 W Closing/Holding Coil, 2 Pole, 2NO-2NC Contact Configuration, 2 Size, Screw Terminal, IP00 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Snap-On/Surface/Threaded Mounting, 85 mm H x 70 mm W x 45 mm D Dimensions
Additional Description: SIEM-3TC4417-0AV4 (N) CONTACTOR,DC OPER,SIZE 1,36V,2NO+2NC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: DC OPERATION DC 36V AUXILIARY CONTACTS 22 (2NO+2NC) DC-3 AND 5,RATD.OPERAT.CURR.32A CONTACTOR, SIZE 2, 2-POLE
3TC4417-0AV4 Application
For switching and controlling DC motors as well as all other DC circuits3TC4417-0AV4 Standards
CCC Certified|CE Marked|CSA Certified|EAC Approved|RMRS Approved|UL ListedSKU #2400229Part Number #3TC4417-0AV4UNSPSC39121521UPC00754554735849
Image provided may only be a representation of final product and may include optional equipment
