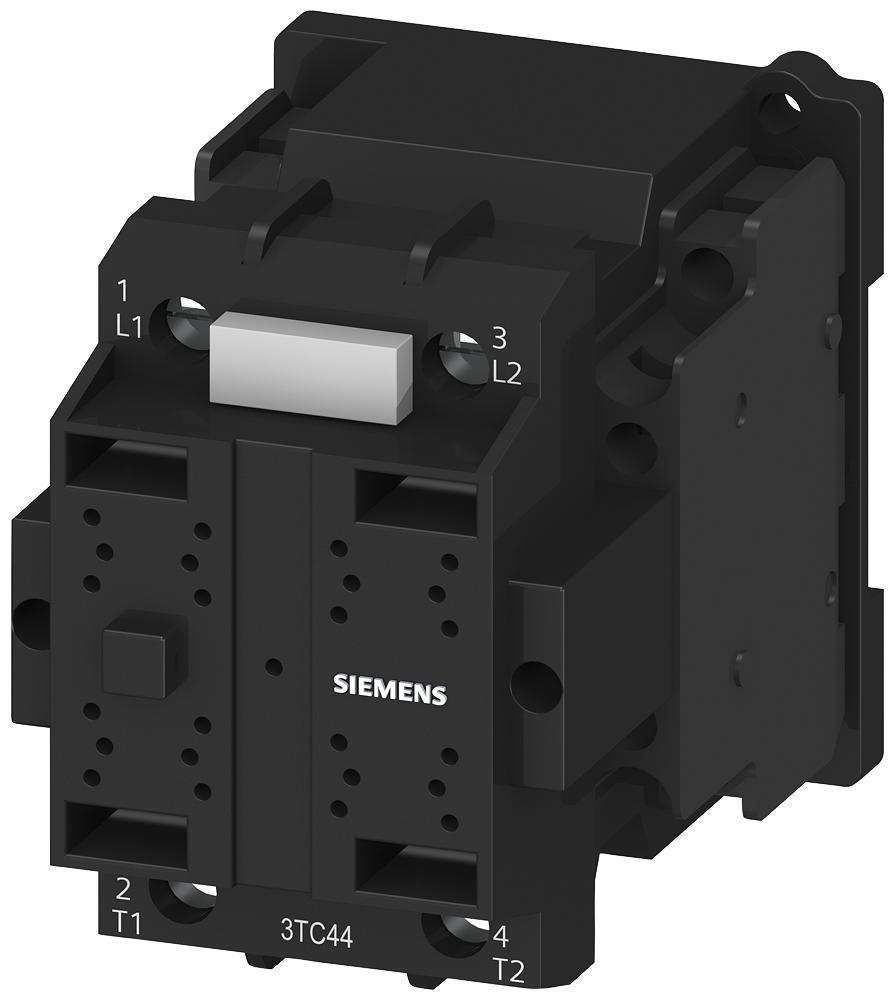

Siemens 3TC4417-0BN1 Power Contactor
Part Number # 3TC4417-0BN1
SKU # 2124988
Siemens 3TC4417-0BN1 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3TC4417-0BN1 |
| SKU #: | 2124988 |
| Coil Voltage: | 220, 220 V AC, 220 VAC |
| Contact Configuration: | 2NO |
| Dimensions: | 85 mm H x 70 mm W x 104 mm D |
| Enclosure Type: | IP00 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 4 |
| Number of Poles: | 2 |
| Operating Temperature: | -25 to 55, -25 to 55 deg C |
| Size: | SZ 2 |
| Terminal Type: | Screw |
| Wattage: | 2.5/5, 2.5/5 kW |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00754554185071 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3TC4417-0BN1 Power Contactor
Brand: Siemens
Part Number: 3TC4417-0BN1
Siemens Power Contactor, 220 VAC Coil, 32/29/21/7.5 A Maximum Load Current, 2 Pole, 50/60 Hz Frequency, 2.5/5 kW Wattage, 2NO Contact Configuration, 4 Auxiliary Contacts, SZ 2 Size, Screw Terminal, IP00 Enclosure, -25 to 55 deg C Operating, DIN Rail/Snap-On/Threaded Mounting, 85 mm H x 70 mm W x 104 mm D Dimensions
Additional Description: SIEM-3TC4417-0BN1 (N) CONTACTOR,AC OPER,SIZE 1,220V,2NO+2NC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: AC 220v 60HZ/AC 183v 50HZ AC operation auxiliary contacts 22 (2NO+2NC) DC-3 and5,ratd.operat.curr.32a contactor, size 2, 2-pole
3TC4417-0BN1 Application
Switching Motors Applications3TC4417-0BN1 Item Features
- These can also be equipped with an AS-i or IO-link interface as an option, which significantly reduces the control circuit wiring
3TC4417-0BN1 Standards
CCC Certified|CSA Certified|CE Certified|UL ListedSKU #2124988Part Number #3TC4417-0BN1UNSPSC39121521UPC00754554185071
