3TC48170LB4

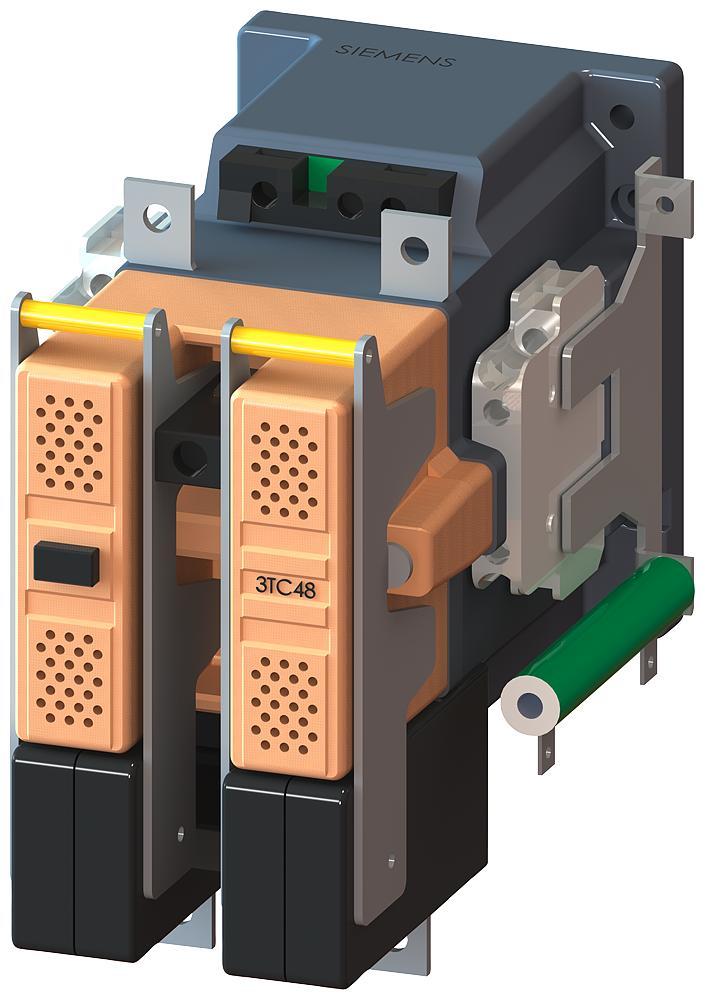

Siemens 3TC48170LB4 Contactor
Part Number # 3TC48170LB4
SKU # 2409484
$2582.57 / Each
Typical price:$2620.00 / Each
Siemens 3TC48170LB4 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3TC48170LB4 |
| SKU #: | 2409484 |
| Coil Power Rating: | 45 kW |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Configuration: | 2NO |
| Contact Rating: | A600/P600 |
| Dimensions: | 177.5 mm H x 143 mm W x 184 mm D |
| Enclosure Type: | IP00 |
| Number of Auxiliary Contacts: | 2NO-1NC |
| Number of Poles: | 2 |
| Operating Cycles: | 10000000 |
| Series: | 3TC48 |
| Size: | S2 |
| Terminal Type: | Screw |
| Wattage: | 19 W DC Closing/Holding |
| Country of origin: | DE |
| Mounting type: | Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00804766159329 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2582.57 / Each
Typical price:$2620.00 / Each
Quantity:
- Siemens Contactor, Series: 3TC48, 24 V DC Coil, 75 A Maximum Load Current, 45 kW Coil Power Rating, 2 Poles, 19 W DC Closing/Holding, 2NO, 2NO-1NC Auxiliary Contacts, A600/P600 Contact, S2, Screw Terminal, IP00, 10000000 Operating Cycles, Threaded Mount, 177.5 mm H x 143 mm W x 184 mm D
3TC48170LB4 Item Features
- 6.5 kW at 110 V, 13 kW at 220 V, 27 kW at 440 V, 38 kW at 600 V, 45 kW at 750 V power
3TC48170LB4 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|RMRS Approved|DIN EN 81346-2|DIN EN 61346-2|DIN 40719|IEC 204-2|IEC 750|WEEE 2012/19/EU|REACH Article No. 33SKU #2409484Part Number #3TC48170LB4UNSPSC39121529UPC00804766159329
