Brand: Siemens

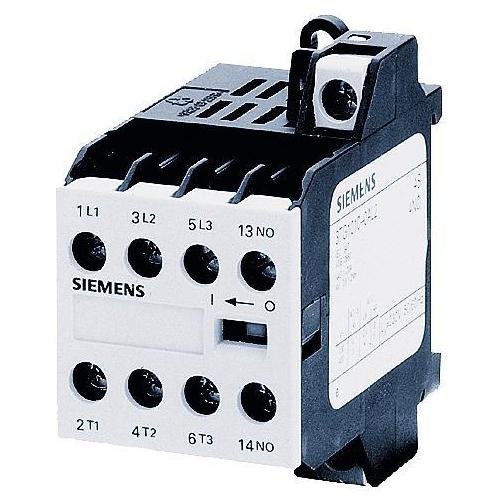

Siemens 3TG1001-0AG2 Power Relay Contactor
Image Disclaimers Message
Brand: Siemens
Siemens 3TG1001-0AG2 Power Relay Contactor
Brand: Siemens
Siemens 3TG1001-0AG2 Power Relay Contactor
Part #:3TG1001-0AG2
SKU #: 2361132
$1789.30/10EA
Key Features
Part #:3TG1001-0AG2
SKU #: 2361132
Brand: Siemens
Amperage Rating: 8.4/20, 8.4/20 A
Coil Voltage: 110, 110 VAC
Contact Configuration: 3NO-1NC
Contact Form: 3NO-1NC
Dimensions: 62 mm H x 36 mm W x 60 mm D
$1789.30/10EA
- These can also be equipped with an AS-i or IO-link interface as an option, which significantly reduces the control circuit wiring
Specifications
Brand: Siemens
Amperage Rating: 8.4/20, 8.4/20 A
Coil Voltage: 110, 110 VAC
Contact Configuration: 3NO-1NC
Contact Form: 3NO-1NC
Dimensions: 62 mm H x 36 mm W x 60 mm D
Enclosure Type: IP00
Frequency Rating: 45/450, 45/450 Hz
Number of Poles: 4
Operating Temperature: -25 to 55
Power Rating: 4, 4 W
Temperature Rating (Degrees F): -25 to 55, -25 to 55 deg C
Terminal Type: Screw
Wattage: 4
Country of origin: TR
Mounting type: DIN Rail
Manufacturer Name: Siemens
UNSPSC: 39122324
UPC: 00754554849553
Siemens 3TG1001-0AG2 Power Relay Contactor
Siemens Power Relay Contactor, 8.4/20 A, 4 W, 45/450 Hz, 110 VAC Coil, 3NO-1NC, 4 Pole, DIN Rail Mount, Screw Terminal, IP00, -25 to 55 deg C, 62 mm H x 36 mm W x 60 mm D
Additional Description: SIEM-3TG1001-0AG2 CONTACTOR,3NO+1NC,DIN RAIL MTD,110VAC
Catalog Description: Power Relay, SIMIREL AC-1 Current = 20 amps AC-1 Power = 13 KW AC-2 and AC-3 Current=8.4 amps AC-2 and AC-3 Power = 4 KW 110VAC Screw,3NO+1NC
Item FeaturesSwitching Motors Applications
Item Features
Item FeaturesCCC Certified|CSA Certified|CE Certified|UL Listed|EAC Approved
