Part Number # 3TH43550AP0
SKU # 2229749
Brand: Siemens
3TH43550AP0
Siemens 3TH43550AP0 Contactor Relay
Part Number # 3TH43550AP0
SKU # 2229749
$919.60 / Each
Siemens 3TH43550AP0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3TH43550AP0 |
| SKU #: | 2229749 |
| Coil Voltage: | 230/277 V AC |
| Contact Form: | 5NO-5NC 5 Form C |
| Contact Rating: | 6/10 A at 230/400 V AC |
| Dimensions: | 55 mm W x 102 mm D x 78 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 8/10 |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Terminal Type: | Screw |
| Type: | AC Operated |
| Country of origin: | TR |
| Mounting type: | Snap-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122331 |
| UPC: | 00040892923339 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$919.60 / Each
Quantity:
- Siemens, 3TH43550AP0, Contactor Relay, AC Operated, 50/60 Hz Frequency, 230/277 V AC Coil, 5NO-5NC 5 Form C Contact Form, 6/10 A at 230/400 V AC Contact, 8/10 Pole, Snap-On Mounting, Screw Terminal, IP20 Enclosure, -25 to 55 deg C, 55 mm W x 102 mm D x 78 mm H Dimensions
3TH43550AP0 Specifications
- High contact stability at low voltages and currents as a result of double break contacts
- Contactor relays can be equipped with RC elements, varistors, diodes or diode assemblies (combination of a diode and a Zener diode) for damping opening surges
- The surge suppressors can be mounted directly on the coil
- The off delay times of the NO contacts and the on delay times of the NC contacts increase if the contactor coils are attenuated against voltage peaks
- 10 A at 230 VAC/6 A at 400 VAC AC-15 contact rating
3TH43550AP0 Item Features
- The off delay times of the NO contacts and the on delay times of the NC contacts increase if the contactor coils are attenuated against voltage peaks
- 10 A at 230 VAC/6 A at 400 VAC AC-15 contact rating
- The surge suppressors can be mounted directly on the coil
- Contactor relays can be equipped with RC elements, varistors, diodes or diode assemblies (combination of a diode and a Zener diode) for damping opening surges
- High contact stability at low voltages and currents as a result of double break contacts
3TH43550AP0 Standards
IEC 60947-5-1|EN 50011SKU #2229749Part Number #3TH43550AP0UNSPSC39122331UPC00040892923339

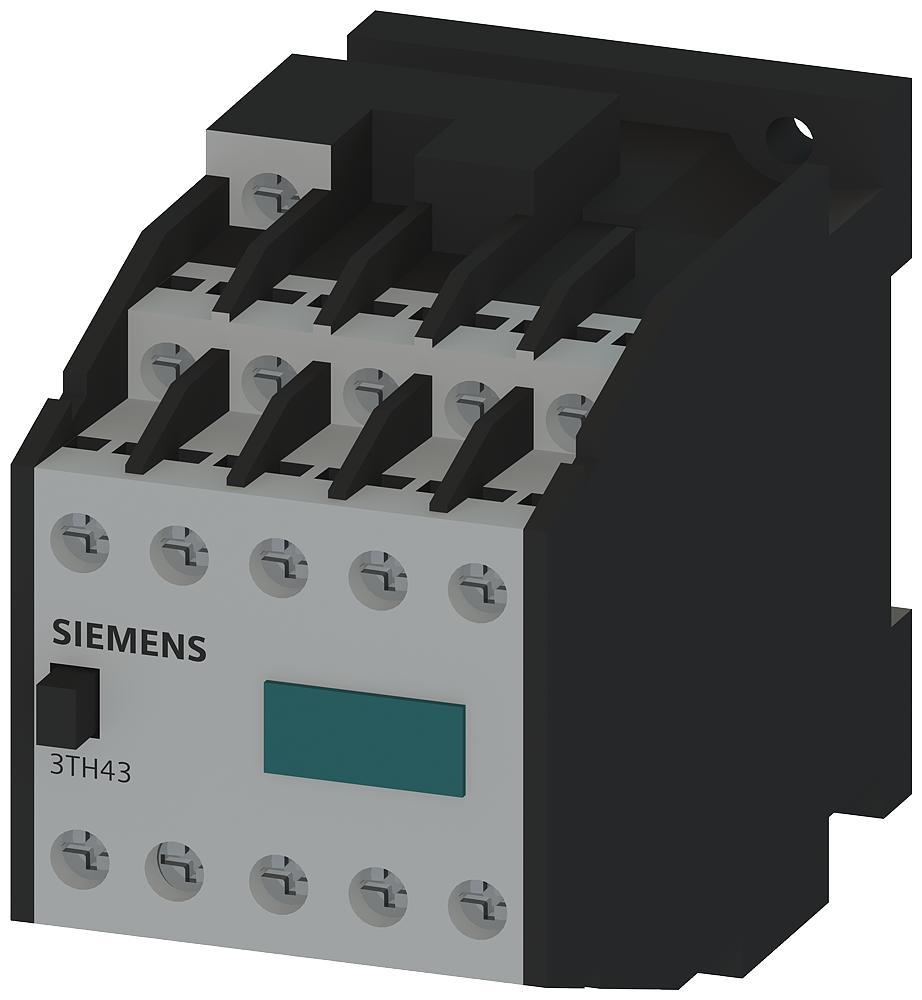

Image provided may only be a representation of final product and may include optional equipment
