Part Number # 3TH4382-0BB4
SKU # 159717
Brand: Siemens
3TH4382-0BB4
Siemens 3TH4382-0BB4 SIRIUS Contactor Relay
Part Number # 3TH4382-0BB4
SKU # 159717
$1074.86 / Each
Siemens 3TH4382-0BB4 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3TH4382-0BB4 |
| SKU #: | 159717 |
| Coil Voltage: | 24 V DC |
| Contact Form: | 8NO-2NC Form A/2 Form B |
| Contact Rating: | 10/2 A at 230/690 V AC, 10/0.6 A at 48/440 V DC |
| Dimensions: | 78 mm H x 55 mm W x 135 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 10 |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Terminal Type: | Screw |
| Country of origin: | TR |
| Mounting type: | Snap-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122331 |
| UPC: | 00754554245928 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1074.86 / Each
Quantity:
- Siemens SIRIUS, 3TH4382-0BB4, Contactor Relay, 50/60 Hz Frequency, 24 V DC Coil, 8NO-2NC Form A/2 Form B Contact Form, 10/2 A at 230/690 V AC, 10/0.6 A at 48/440 V DC Contact, 10 Pole, Snap-On Mounting, Screw Terminal, IP20 Enclosure, -25 to 55 deg C, 78 mm H x 55 mm W x 135 mm D Dimensions
3TH4382-0BB4 Item Features
- DC solenoid system
- The 3TH42 and 3TH43 contactor relays are suitable for use in any climate
- They are finger safe according to EN 50274
- 10/2 A at 230/690 VAC, 10/0.6 A at 48/440 VDC DC-12
- The off delay times of the NO contacts and the on delay times of the NC contacts increase if the contactor coils are attenuated against voltage peaks
- 10 A at 230 VAC/6 A at 400 VAC AC-15 contact rating
- The surge suppressors can be mounted directly on the coil
- The 3TH42 and 3TH43 contactor relays can be equipped with RC elements, varistors, diodes or diode assemblies (combination of a diode and a zener diode) for damping opening surges
- High contact stability at low voltages and currents as a result of double break contacts
3TH4382-0BB4 Standards
CE|CSA Certified|EAC Standard|UL Listed|IEC 60947-5-1|EN 50011SKU #159717Part Number #3TH4382-0BB4UNSPSC39122331UPC00754554245928

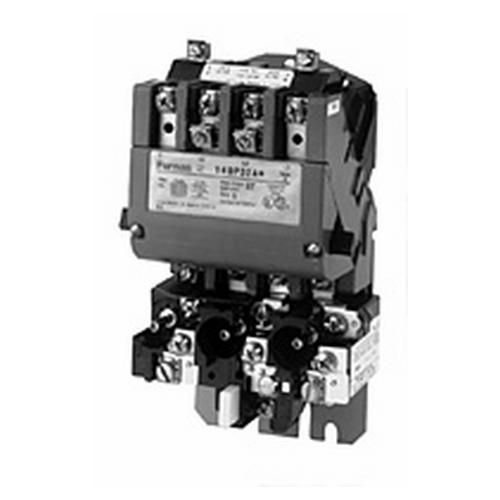

Image provided may only be a representation of final product and may include optional equipment
