Siemens 3UF70111AU000 SIRIUS Basic Module
Image Disclaimers Message

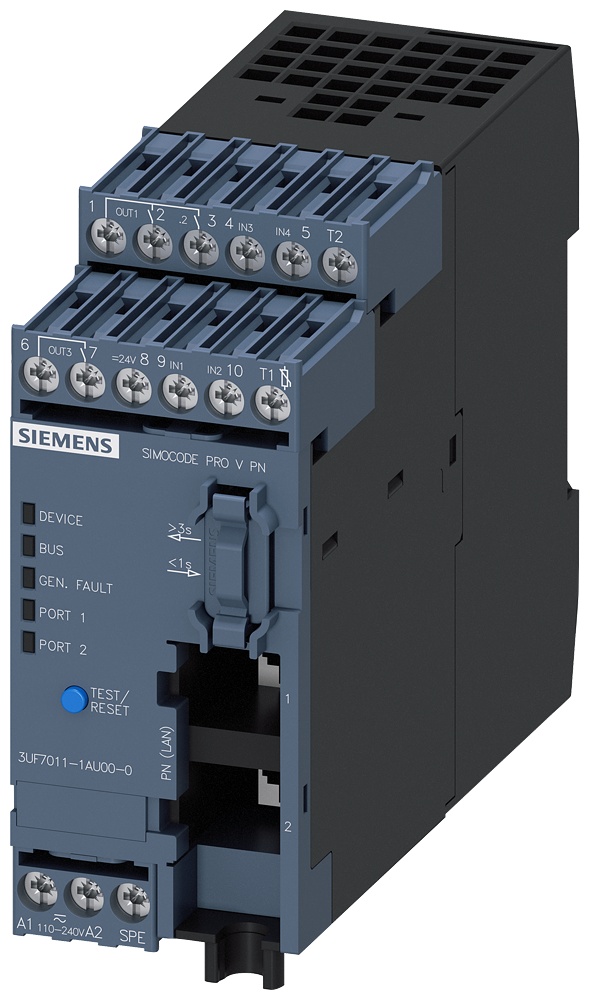

Siemens 3UF70111AU000 SIRIUS Basic Module
Siemens 3UF70111AU000 SIRIUS Basic Module
Part #:3UF70111AU000
SKU #: 2286026
Key Features
Part #:3UF70111AU000
SKU #: 2286026
Brand: Siemens
Dimensions: 111 mm H x 45 mm W x 124 mm D
Electrical Connections: 2x RJ45, 9-Pin SUB-D Socket/Screw Terminal
Enclosure Type: IP20
Function: Bus Communication/Data Acquisition/Diagnostics/Password Protection/Test/Maintenance, Soft Starter Control/Data Acquisition/Diagnostics/Password Protection/Test/Maintenance
Input Rating: 110 to 240 VAC/VDC
- 100 Mbit/sec maximum transfer rate
- 0.8 to 1.2 Nm tightening torque
- 5 to 95% relative humidity
- 4-inputs for thermistor connection, 3-outputs
- 400 to 800 Ohm response value of thermoresistor, 500 to 650 Ohm release value of thermoresistor
- https://sie.ag/37KcINi
Siemens 3UF70111AU000 SIRIUS Basic Module
Siemens Basic Unit, Series: SIMOCODE Pro V, Function: Bus Communication/Data Acquisition/Diagnostics/Password Protection/Test/Maintenance, 4I/3O Freely Parameterizable Input, 110 to 240 VAC/VDC Input, 2x RJ45 Electrical Connections, IP20 Enclosure, Threaded/Snap-On Mounting, 111 mm H x 45 mm W x 124 mm D Dimensions
Additional Description: SIEM-3UF70111AU000 SIMOCODE PRO V PN 110-240VUC
Catalog Description: Basic unit 3 SIMOCODE pro pn ethernet / PROFINET io opc ua server / web server transmission rate 100mbit/s 2 x bus connection via rj45 4e/3a freely parameterizable us AC/DC 110-24v input f. thermistor connection monostable relay outputs expandable with expansion module
