Brand: Siemens

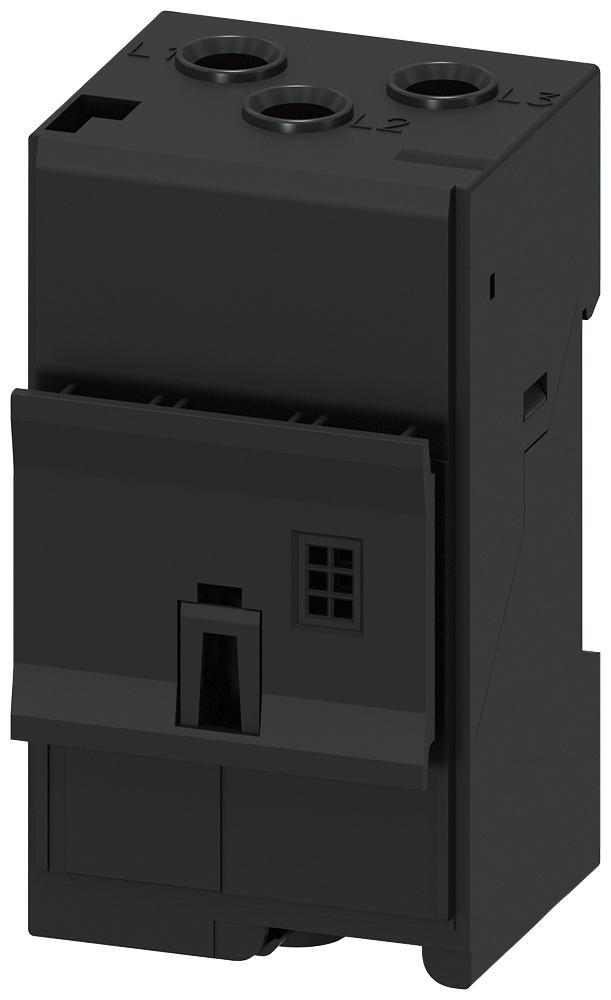

Siemens 3UF7100-1AA00-0 SIRIUS Current Measuring Module
Image Disclaimers Message
Brand: Siemens
Siemens 3UF7100-1AA00-0 SIRIUS Current Measuring Module
Brand: Siemens
Siemens 3UF7100-1AA00-0 SIRIUS Current Measuring Module
Part #:3UF7100-1AA00-0
SKU #: 2185802
$245.44/EA
Key Features
Part #:3UF7100-1AA00-0
SKU #: 2185802
Brand: Siemens
Amperage Rating: 0.3 to 3, 0.3 to 3 A
Dimensions: 84 mm H x 45 mm W x 45 mm D
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz
Terminal Type: Threaded
$245.44/EA
- 6000 VAC surge voltage resistance
- 1 to 6 Hz/15 mm, 6 to 500 Hz/2 g vibration resistance
- Straight-through transformers connection
- 15 g/11 ms shock resistance
- 3-pole for main current circuit
- 5 to 95% relative humidity
- -25 to 60 deg C operating
Specifications
Brand: Siemens
Amperage Rating: 0.3 to 3, 0.3 to 3 A
Dimensions: 84 mm H x 45 mm W x 45 mm D
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz
Terminal Type: Threaded
Voltage Rating: 110 to 690, 110 to 690 VAC
Country of origin: DE
Mounting type: Snap-On
Manufacturer Name: Siemens
UNSPSC: 32151705
UPC: 00754554901688
Siemens 3UF7100-1AA00-0 SIRIUS Current Measuring Module
SIRIUS Current Measuring Module, 110 to 690 VAC, 0.3 to 3 A, 50/60 Hz, Snap-On Mount, Threaded Terminal, IP20, 84 mm H x 45 mm W x 45 mm D
Additional Description: SIEM-3UF7100-1AA00-0 SIMOCODE PRO CUR MEAS. MODULE,0.3-3A
Catalog Description: Straight-through ct overall width 45mm set current 0,3...3a current measuring module
Item Features
Item FeaturesUL Listed|CSA Certified|CCC Certified|EAC Standard
