Part Number # 3UF71111AA010
SKU # 2369392
Image provided may only be a representation of
final product and may include optional equipment
3UF71111AA010

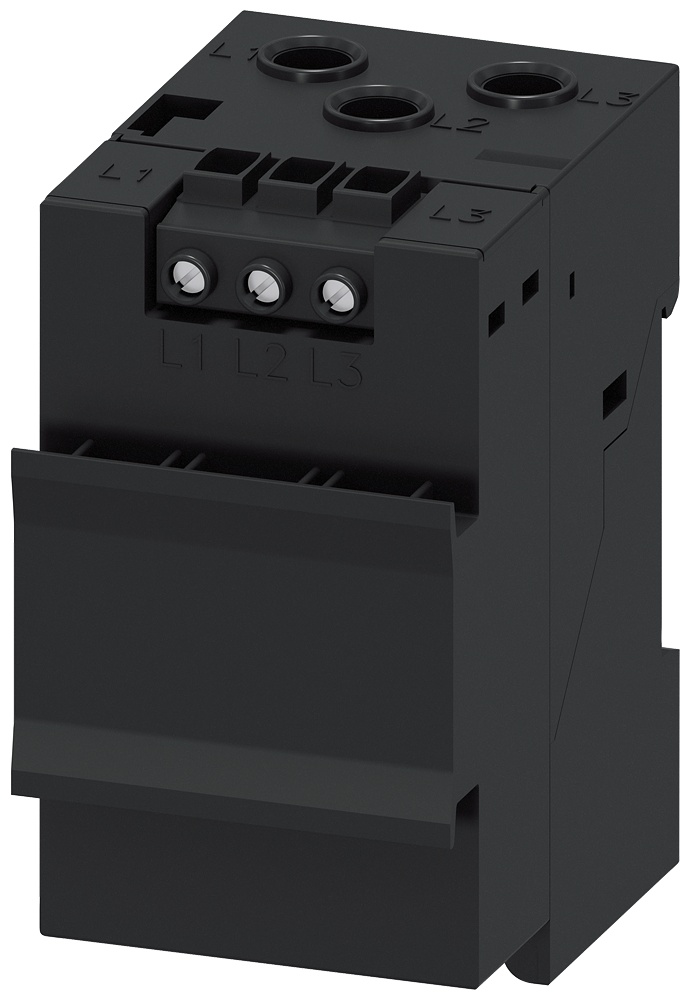

Siemens 3UF71111AA010 SIRIUS Measuring Module
Part Number # 3UF71111AA010
SKU # 2369392
Siemens 3UF71111AA010 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3UF71111AA010 |
| SKU #: | 2369392 |
| Amperage Rating: | 3 to 40 A |
| Dimensions: | 84 mm H x 45 mm W x 64 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Terminal Type: | Straight Through Transformer/Screw |
| Type: | 3-Pole |
| Country of origin: | DE |
| Mounting type: | Threaded/Snap-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121552 |
| UPC: | 00804766420177 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3UF71111AA010 SIRIUS Measuring Module
Brand: Siemens
Part Number: 3UF71111AA010
Siemens Current/Voltage Measuring Module, 3-Pole, 110 to 690 VAC, 3 to 40 A, 50/60 Hz Frequency, Threaded/Snap-On Mounting, Straight Through Transformer/Screw Terminal, IP20 Enclosure, 84 mm H x 45 mm W x 64 mm D Dimensions
Additional Description: SIEM-3UF71111AA010 CURRENT/VOLTAGE MEASUR. MODULE CURRENT/VOLTAGE MEASURING MODULE V2; SET CURRANT 3...40 A, VOLTAGE MEASUREMENT UP TO 690 V, OVERALL WIDTH 45MM, STRAIGHT THROUGH TRANSFORMER
Catalog Description: Current/voltage meas. module v2 set current 3...40a voltage detection up to 690v overall width 45mm straight-through ct
3UF71111AA010 Item Features
- Current/voltage measuring module V2 set current 3 to 40 A, voltage measurement up to 690 V, overall width 45 mm, straight through transformer, basic unit required per V PB or per V MR in version -ZB01, per V PN or per V EIP.
- https://sie.ag/37KcINi
3UF71111AA010 Standards
UL Listed|CSA Certified|EAC Approved|CE Certified|C-Tick|CCC CertifiedSKU #2369392Part Number #3UF71111AA010UNSPSC39121552UPC00804766420177
