Part Number # 3UG4511-1AQ20
SKU # 2409070
Brand: Siemens
3UG4511-1AQ20
Siemens 3UG4511-1AQ20 Phase Sequence Monitoring Relay
Part Number # 3UG4511-1AQ20
SKU # 2409070
$109.60 / Each
Typical price:$170.50 / Each
Siemens 3UG4511-1AQ20 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3UG4511-1AQ20 |
| SKU #: | 2409070 |
| Contact Configuration: | 1NC SPST, 1NC-SPST |
| Dimensions: | 83 mm H x 22.5 mm W x 91 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Pins: | 3 |
| Terminal Type: | Screw |
| Type: | Analog |
| Country of origin: | DE |
| Mounting type: | Snap-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00754554931425 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$109.60 / Each
Typical price:$170.50 / Each
Quantity:
Siemens 3UG4511-1AQ20 Phase Sequence Monitoring Relay
Brand: Siemens
Part Number: 3UG4511-1AQ20
Siemens Phase Sequence Monitoring Relay, Analog, 420 to 690 VAC, 50/60 Hz Frequency, 1NC-SPST Contact Configuration, 3 Pins, Snap-On Mounting, Screw Terminal, IP20 Enclosure, 83 mm H x 22.5 mm W x 91 mm D Dimensions
Additional Description: SIEM-3UG4511-1AQ20 PHASE SEQUENCE MONITORING
Catalog Description: Phase sequence monitoring 3x 420 to 690 V AC 50 to 60 HZ 1 changeover contact screw terminal
3UG4511-1AQ20 Item Features
- 450 ms response time
- 6 kV surge voltage resistance
- 2 W power consumption
- 1 to 6 Hz/15 mm, 6 to 500 Hz/2 g vibration resistance
- Sinusoidal half wave 15 g/11 ms shock resistance
- 690 VAC insulation voltage
- 3 deg of pollution
- -25 to 60 deg C operating
- -40 to 85 deg C storage
- 0.8 to 1.2 N-m tightening torque
- 10000000 operating cycles
- 3X phase sequence monitoring
- One changeover contact
3UG4511-1AQ20 Standards
CE|CCC Certified|EAC Standard|UL ListedSKU #2409070Part Number #3UG4511-1AQ20UNSPSC39121521UPC00754554931425

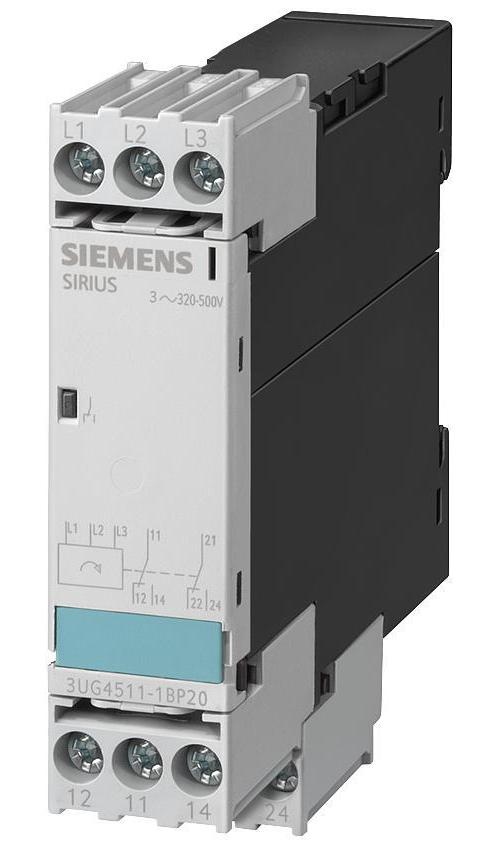

Image provided may only be a representation of final product and may include optional equipment
