Siemens 3UG45112BP20 SIRIUS Phase Monitoring Relay
Part Number # 3UG45112BP20
SKU # 2400786
Siemens 3UG45112BP20 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3UG45112BP20 |
| SKU #: | 2400786 |
| Contact Configuration: | 2CO |
| Dimensions: | 94 mm H x 22.5 mm W x 91 mm D |
| Display Type: | LCD |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50 to 60 Hz |
| Series: | 3UG451 |
| Terminal Type: | Spring Loaded |
| Type: | Adjustable Analog |
| Country of origin: | DE |
| Mounting type: | Snap-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122332 |
| UPC: | 00804766187940 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3UG45112BP20 SIRIUS Phase Monitoring Relay
Brand: Siemens
Part Number: 3UG45112BP20
Siemens SIRIUS Phase Monitoring Relay, Adjustable Analog, Series: 3UG451, 360 to 520 VAC, 50 to 60 Hz Frequency, 2CO Contact Configuration, Snap-On Mounting, Spring Loaded Terminal, LCD Display, IP20 Enclosure, 94 mm H x 22.5 mm W x 91 mm D Dimensions
Additional Description: SIEM-3UG45112BP20 PHASE SEQUENCE MONITORING
Catalog Description: Analog monitoring relay phase sequence monitoring 3x 360 to 520V AC 50 to 60 HZ2 changeover contacts spring loaded connection
3UG45112BP20 Application
For monitoring of line and voltage, phase sequence and phase failure3UG45112BP20 Item Features
- Thanks to the wide voltage range, the monitoring relays can be used on any power systems around the world from 160 to 600 VAC without separate auxiliary voltage
- Variably adjustable to overshoot, undershoot or range monitoring
- Freely configurable delay times and RESET response
- Narrow width for all versions
- Permanent display of ACTUAL value and type of line fault with digital versions
- Automatic correction of rotation direction by differentiating between line faults and incorrect phase sequence
3UG45112BP20 Standards
UL Listed|CCC Marked|EAC Certified|RCM C-Tick Certified|CE Certified|Lloyds Register|DNV-GL Approved|WEEE 2012/19/EU|REACH Article 33SKU #2400786Part Number #3UG45112BP20UNSPSC39122332UPC00804766187940

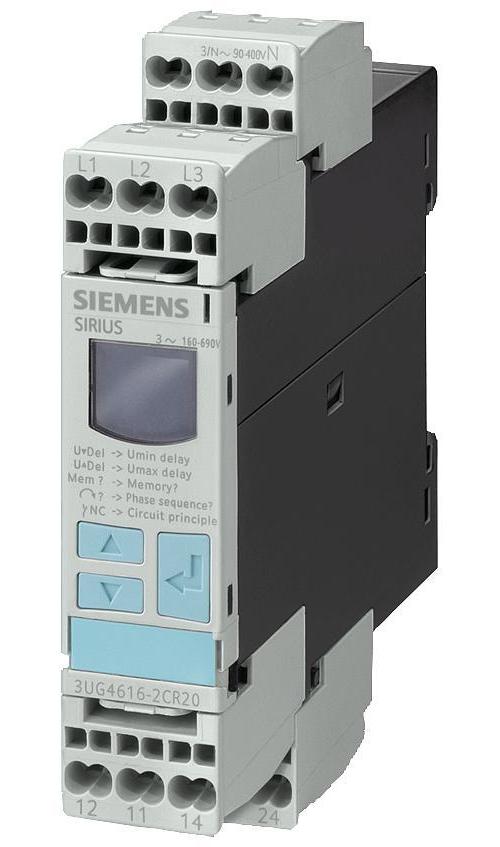

Image provided may only be a representation of final product and may include optional equipment
