Part Number # 3UG46162CR20
SKU # 2292362
3UG46162CR20
Siemens 3UG46162CR20 Digital Monitoring Relay
Part Number # 3UG46162CR20
SKU # 2292362
Siemens 3UG46162CR20 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3UG46162CR20 |
| SKU #: | 2292362 |
| Amperage Rating: | 5, 5 A |
| Contact Configuration: | 2CO |
| Dimensions: | 22.5 mm W x 91 mm D x 103 mm H |
| Display Type: | LCD |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Terminal Type: | Spring |
| Country of origin: | DE |
| Mounting type: | Snap-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00887621883720 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3UG46162CR20 Digital Monitoring Relay
Brand: Siemens
Part Number: 3UG46162CR20
Siemens Digital Monitoring Relay, 90 to 400 VAC, 5 A, 50/60 Hz, 2CO, Snap-On Mount, Spring Terminal, LCD, IP20 Enclosure, 22.5 mm W x 91 mm D x 103 mm H
Additional Description: SIEM-3UG46162CR20 VOLTAGE MONITORING RELAY RELAY,3PH,690V,SPR
Catalog Description: Digital monitoring relay for 3-phase line volt. w. n cond. reversible phase sequence phase failure 3x 160 to 690V AC 50 to 60 HZ undervolt. and overvolt. 160-690v hysteresis 1-20v 0-20s eACh for umin and umax 1 w for umin 1 w for umax spring-loaded terminal
3UG46162CR20 Standards
CCC Certified|CE Certified|DIN 40719|DIN EN 61346-2/81346-2|EAC Certified|IEC 204-2/750|RCM Approved|UL ListedSKU #2292362Part Number #3UG46162CR20UNSPSC39121521UPC00887621883720

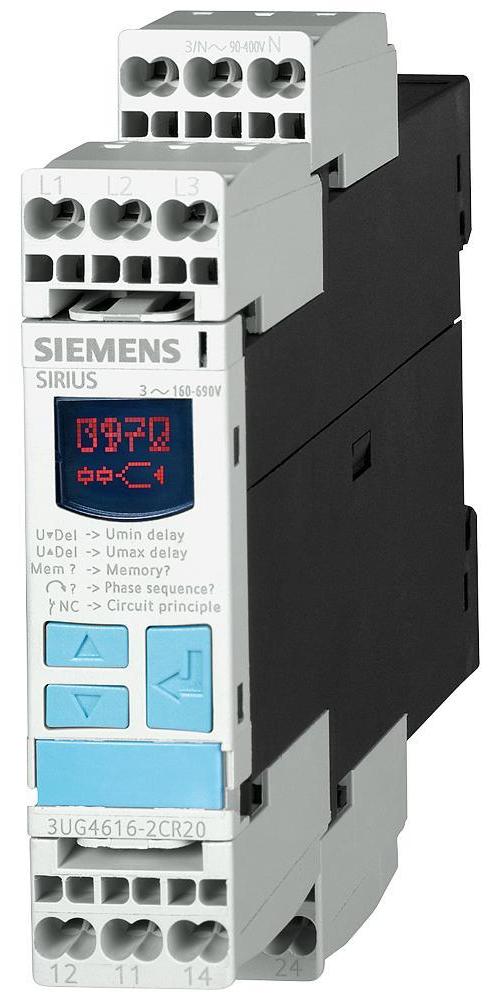

Image provided may only be a representation of final product and may include optional equipment
