Image Disclaimers Message
Brand: Siemens

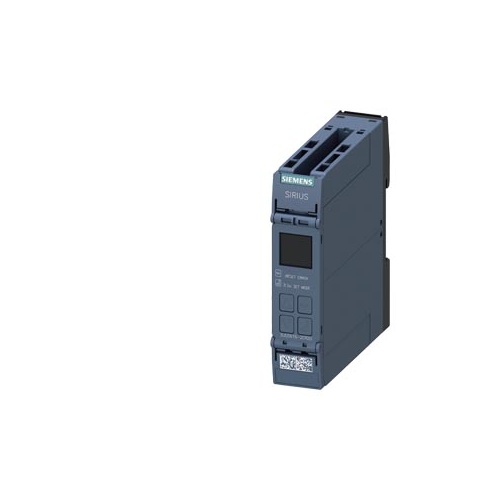

Siemens 3UG56162CR20 3UG5 Monitoring Relay, 90 to 690 VAC, 0.1, 0.2, 1, 3 A
Part Number # 3UG56162CR20
SKU # 2439549
$219.86 / Each
Siemens 3UG56162CR20 Key Features
Brand: Siemens
Part Number # 3UG56162CR20
SKU #2439549
Amperage Rating: 0.1, 0.2, 1, 3 A, 0.1/0.2/1/3 A
Enclosure Type: IP20
Frequency Rating: 15 to 70 Hz
Series: 3UG5
Voltage Rating: 90 to 690 VAC
Country of origin: DE
Mounting type: DIN Rail/Screw/Snap-On
Manufacturer Name: Siemens
UNSPSC: 39121521
UPC: 00195125448483
$219.86 / Each
Siemens 3UG56162CR20 3UG5 Monitoring Relay, 90 to 690 VAC, 0.1, 0.2, 1, 3 A
Brand: Siemens
Part Number: 3UG56162CR20
Additional Description: SIEM-3UG56162CR20 PHAS.AUSF,-FOLGE,- AUSFALL,UEBER- U.SPAN
Catalog Description: Digitally adjustable monitoring relay phase failure, phase sequence, asymmetry,frequency,over- and under-voltage monitoring 3x 90-690 V AC ,15-70 Hz 2 changeover contacts spring-loaded terminal
3UG56162CR20 Standards
RoHS Directive Since 06/01/2023|WEEE Directive (2012/19/EU)|AL : N|ECCN : NSKU #2439549Part Number #3UG56162CR20UNSPSC39121521UPC00195125448483
