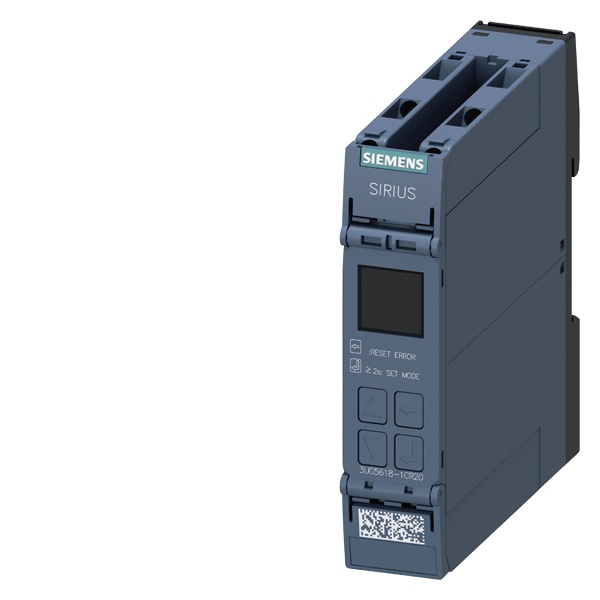

Siemens 3UG56181CR20 3UG5 Monitoring Relay, 90 to 690 VAC, 0.1, 0.2, 1, 3 A
Part Number # 3UG56181CR20
SKU # 2437898
$246.86 / Each
Siemens 3UG56181CR20 Key Features
Brand: Siemens
Part Number # 3UG56181CR20
SKU #2437898
Amperage Rating: 0.1, 0.2, 1, 3 A, 0.1/0.2/1/3 A
Enclosure Type: IP20
Frequency Rating: 15 to 70 Hz
Series: 3UG5
Voltage Rating: 90 to 690 VAC
Country of origin: DE
Mounting type: DIN Rail/Screw/Snap-On
Manufacturer Name: Siemens
UNSPSC: 39121521
UPC: 00195125448490
$246.86 / Each
Siemens 3UG56181CR20 3UG5 Monitoring Relay, 90 to 690 VAC, 0.1, 0.2, 1, 3 A
Brand: Siemens
Part Number: 3UG56181CR20
Additional Description: SIEM-3UG56181CR20 NETZUEBERWACHUNG AC 90..690V, 2W
Catalog Description: Digitally adjustable monitoring relay phase failure, phase sequence, asymmetry,frequency,over- and under-voltage monitoring with phase sequence correction 3x 90-690 V AC,15-70 Hz 2 changeover contacts screw terminal
3UG56181CR20 Standards
RoHS Directive Since 06/01/2023|WEEE Directive (2012/19/EU)|AL : N|ECCN : NSKU #2437898Part Number #3UG56181CR20UNSPSC39121521UPC00195125448490
