- Coil Power Rating: 310 VA Pickup, 26 VA Holding
- Coil Voltage: 110 to 120/220 to 240
- Contact Configuration: 3NO
- Contact Rating: 90
- Dimensions: 6.4 in H x 6.75 in W x 5.19 in D
- Enclosure Type: NEMA 3
- Frequency Rating: 60
- Number of Poles: 3
- Operating Cycles: 5000000 Cycles Contactor/Typical
- Operating Temperature: -20 to 40
- Size: Size 3
- Terminal Type: Screw
- Type: 3-Phase
- Wattage: 8.6
- Connection type: Screw
- Contact type: Non-Reversing
- Mounting type: Snap-in

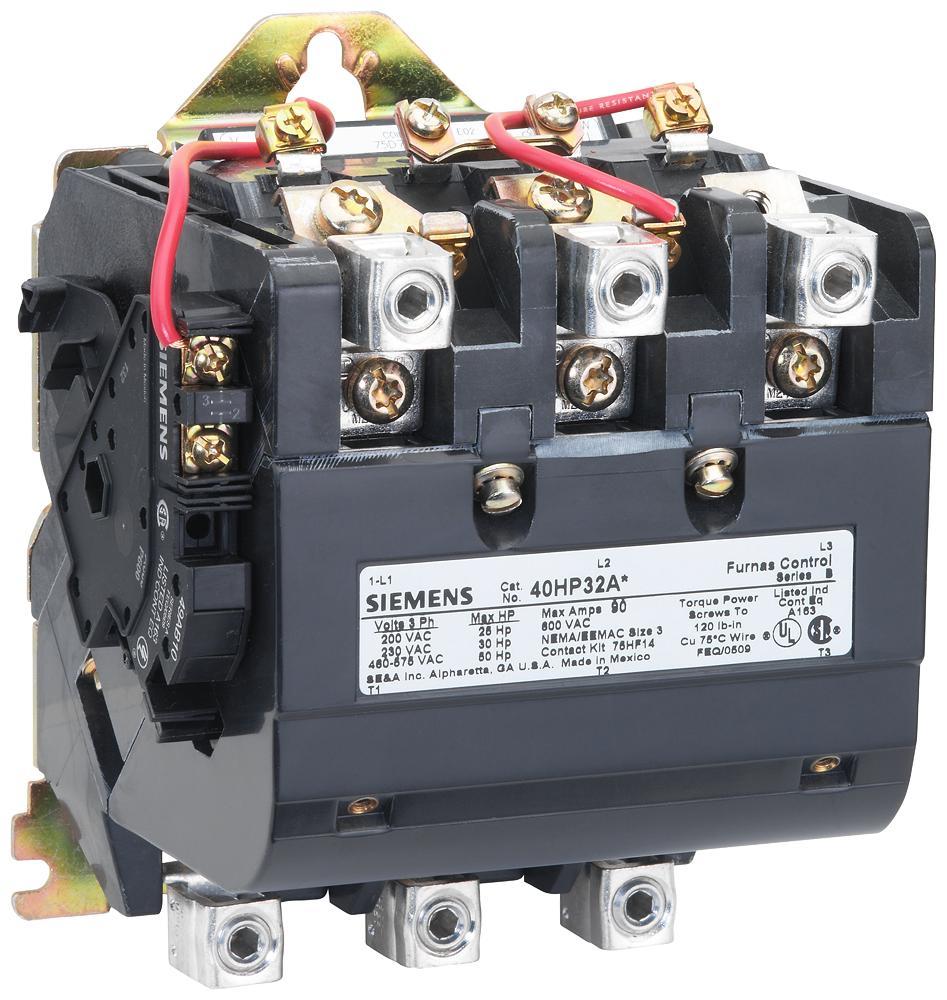

Siemens 40HP32AA NEMA Contactor
Siemens NEMA Contactor, 3-Phase, 110 to 120/220 to 240 VAC Coil, 90 A Maximum Load Current, 310 VA Pickup, 26 VA Holding Coil, 3 Pole, 60 Hz Frequency, 8.6 W Wattage, Non-Reversing Contact, 3NO Contact Configuration, 90 A Contact, Screw Connection, Size 3 Size, Screw Terminal, NEMA 3 Enclosure, 5000000 Cycles Contactor/Typical Operating Cycles, -20 to 40 deg C Operating, Snap-In Mounting, 6.4 in H x 6.75 in W x 5.19 in D Dimensions
Additional Description: SIEM-40HP32AA CONTACTOR, SZ3,3PH,OPN,120/240V
Catalog Description: Non-reversing NEMA contactor, Size 3, Three phase full voltage, Contactor amp rating 90A, 3 wire (NO aux included), 110-120/220-240VAC 60Hz coil, Non-combination type, Enclosure NEMA type (open), No enclosure
- Specifications
- 3 number of wires (no auxiliary include)
- Without enclosure
- 5000000 mechanical service life of the main contacts typical
