Part Number # 40JG32AF
SKU # 869872
Image provided may only be a representation of
final product and may include optional equipment
40JG32AF

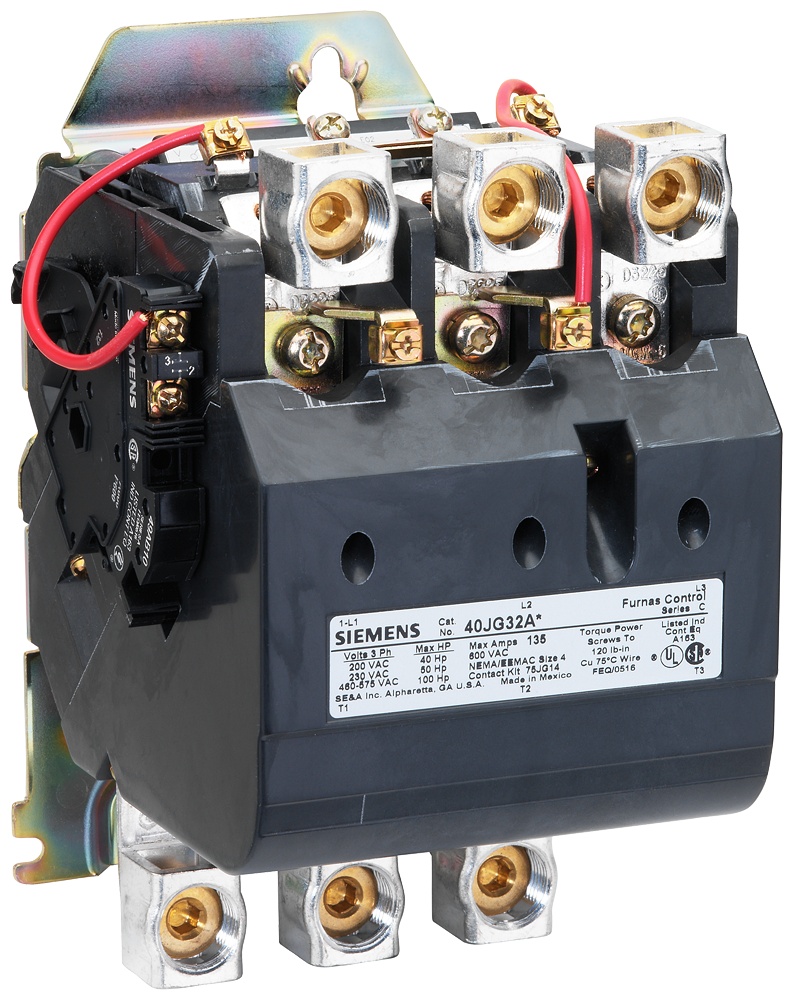

Siemens 40JG32AF NEMA Contactor
Part Number # 40JG32AF
SKU # 869872
Siemens 40JG32AF Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 40JG32AF |
| SKU #: | 869872 |
| Coil Power Rating: | 510 VA Pickup, 51 VA Holding |
| Coil Voltage: | 120, 120 V AC, 120 VAC |
| Contact Configuration: | 1NO |
| Dimensions: | 7.82 in H x 6.75 in W x 5.75 in D |
| Enclosure Type: | Open |
| Frequency Rating: | 60, 60 Hz |
| Operating Cycles: | 5000000 Cycles Contactor/Typical |
| Operating Temperature: | -20 to 40, -20 to 40 deg C |
| Size: | SZ 4 |
| Terminal Type: | Screw |
| Wattage: | 22, 22 W |
| Connection type: | Screw |
| Country of origin: | MX |
| Mounting type: | Surface |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00783087148109 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 40JG32AF NEMA Contactor
Brand: Siemens
Part Number: 40JG32AF
Siemens NEMA Contactor, 120 VAC Coil, 135 A Maximum Load Current, 510 VA Pickup, 51 VA Holding Coil, 60 Hz Frequency, 22 W Wattage, Non-Reversing Contact, 1NO Contact Configuration, Screw Connection, SZ 4 Size, Screw Terminal, Open Enclosure, 5000000 Cycles Contactor/Typical Operating Cycles, -20 to 40 deg C Operating, Surface Mounting, 7.82 in H x 6.75 in W x 5.75 in D Dimensions
Additional Description: SIEM-40JG32AF CONTACTOR, SZ4, 3PH,OPN,120V,
Catalog Description: Non-reversing NEMA contactor, Size 4, Three phase full voltage, Contactor amp rating 135A, 3 wire (NO aux included), 110V 50Hz / 120V 60Hz coil, Non-combination type, Enclosure NEMA type (open), No enclosure
40JG32AF Item Features
- Three phase full voltage
- 3 number of wires (no auxiliary include)
- Without enclosure
- 5000000 mechanical service life of the main contacts typical
SKU #869872Part Number #40JG32AFUNSPSC39121529UPC00783087148109
