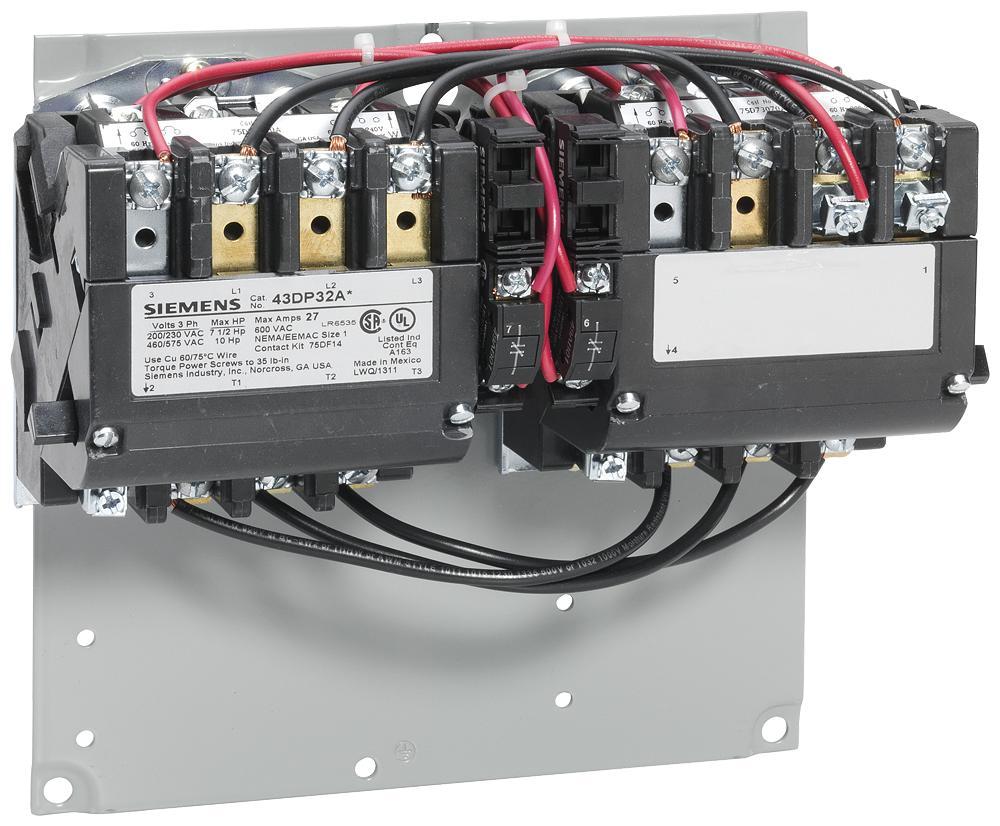

Siemens 43DP32AF Nema Contactor
Part Number # 43DP32AF
SKU # 2396053
$1072.69 / Each
Typical price:$1976.00 / Each
Siemens 43DP32AF Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 43DP32AF |
| SKU #: | 2396053 |
| Coil Power Rating: | 8.6 W |
| Coil Voltage: | 110/120 V AC, 110/120 VAC |
| Contact Configuration: | 3NO |
| Contact Rating: | 10 A at 600 V AC, 5 A at 600 V DC, 10 A at 600 VAC, 5 A at 600 VDC |
| Dimensions: | 7.69 in H x 10.5 in W x 3.9 in D |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 |
| Operating Temperature: | -4 to 104 deg F |
| Size: | S1 |
| Terminal Type: | Screw |
| Type: | 3-Phase 3-Wire Class 43 Full Voltage Heavy Duty Magnetic Non-Combination Reversing |
| Wattage: | 218 VA Pickup, 25 VA Holding |
| Country of origin: | MX |
| Mounting type: | Surface |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00783087078017 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1072.69 / Each
Typical price:$1976.00 / Each
Quantity:
- Siemens NEMA Contactor, 3-Phase 3-Wire Class 43 Full Voltage Heavy Duty Magnetic Non-Combination Reversing, 110/120 VAC Coil, 27 A Maximum Load Current, 8.6 W Coil Power Rating, 3 Poles, 50/60 Hz, 218 VA Pickup, 25 VA Holding, 3NO, 2NO-2NC Auxiliary Contacts, 10 A at 600 V AC, 5 A at 600 V DC Contact, S1, Screw Terminal, Open, 10000000 Operating Cycles, -4 to 104 deg F Operating, Surface Mount, 7.69 in H x 10.5 in W x 3.9 in D
43DP32AF Item Features
- Gravity dropout contacts
- 45 deg wedge action contacts
- Self-rising pressure type control terminals
- Encapsulated coil
- 110 VAC at 50 Hz, 120 VAC at 60 Hz coil voltage
43DP32AF Standards
UL 508|CSA 22.2 No. 14|NEMA ICS 2SKU #2396053Part Number #43DP32AFUNSPSC39121529UPC00783087078017
