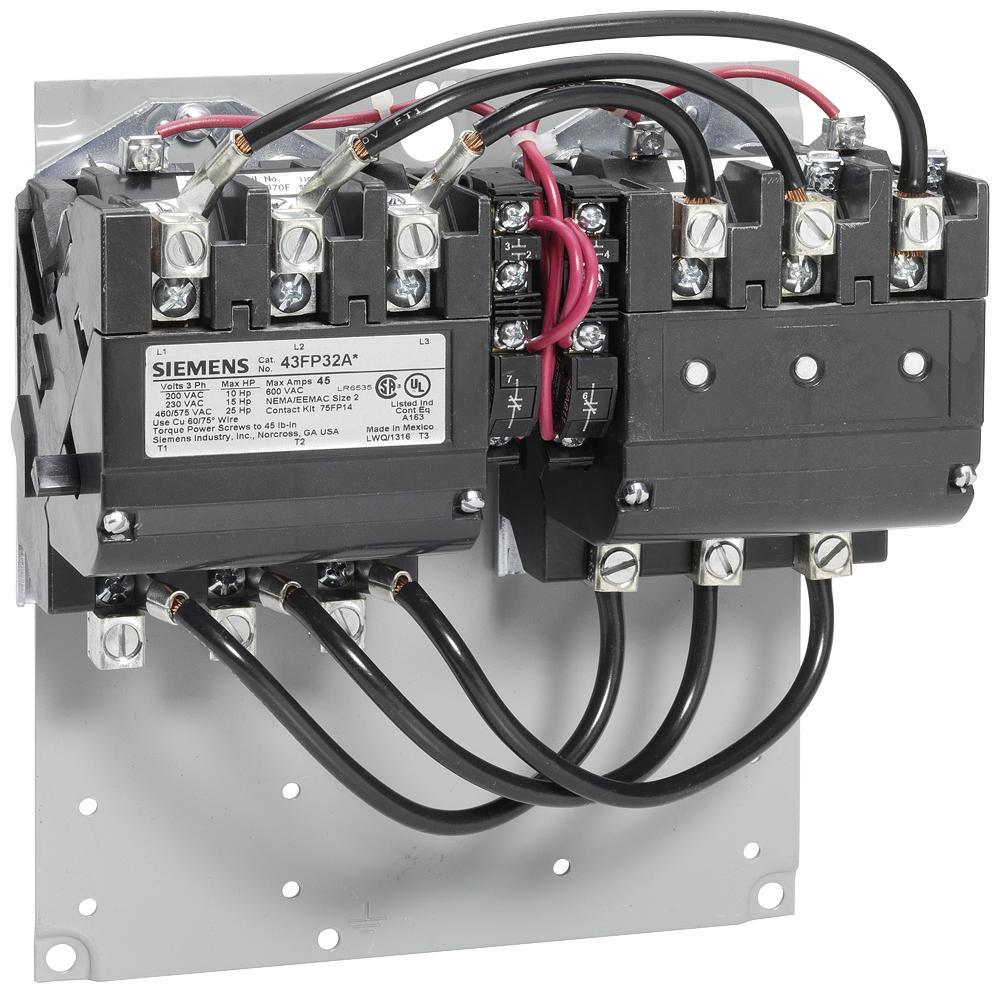

Siemens 43GP32AF NEMA Contactor

2274490 MFG #: 43GP32AF
$3,177.75 / EA
Usually Ships within 5-8 Days
  • Coil Power Rating: 30
  • Coil Voltage: 110/120
  • Contact Configuration: 3NO
  • Contact Rating: 10 A at 600 VAC, 5 A at 600 VDC
  • Dimensions: 8.94 in H x 10.5 in W x 4.09 in D
  • Enclosure Type: Open
  • Frequency Rating: 50/60
  • Number of Auxiliary Contacts: 2NO-2NC
  • Number of Poles: 3
  • Operating Cycles: 10000000
  • Operating Temperature: -4 to 104
  • Series: Class 43
  • Size: SZ 2-1/2
  • Terminal Type: Screw
  • Type: 3-Phase Heavy Duty Non-Combination/Reversing
  • Connection type: Box Lug
  • Mounting type: Surface

Siemens 43GP32AF NEMA Contactor

Siemens NEMA Contactor, 3-Phase Heavy Duty Non-Combination/Reversing, Series: Class 43, 110/120 VAC Coil, 60 A Maximum Load Current, 30 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, 10 A at 600 VAC, 5 A at 600 VDC Contact, Box Lug Connection, SZ 2-1/2 Size, Screw Terminal, Open Enclosure, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, Surface Mounting, 8.94 in H x 10.5 in W x 4.09 in D Dimensions

Additional Description: SIEM-43GP32AF CONTACTOR-REV,SZ2.5,3PH,OPN,120V

Catalog Description: Reversing contactor, Size 2 1/2, Three phase full voltage, Contactor amp rating60A, 3 wire (NO aux included), 110V 50Hz / 120V 60Hz coil, Non-combination type, Enclosure NEMA type (open), No enclosure

  • Specifications
  • 15 hp at 200 VAC, 20 hp at 230 VAC, 30 hp at 460 VAC, 30 hp at 575 VAC
