Part Number # 43JG32AA
SKU # 2458295
43JG32AA
Siemens 43JG32AA
Part Number # 43JG32AA
SKU # 2458295
Siemens 43JG32AA Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 43JG32AA |
| SKU #: | 2458295 |
| Coil Power Rating: | 22 W |
| Coil Voltage: | 110 V AC, 190 to 220 V AC, 110 to 120 V AC, 220 to 240 V AC |
| Contact Configuration: | 3NO |
| Contact Rating: | 10 A at 600 V AC, 5 A at 600 V DC |
| Dimensions: | 8.5 in H x 12.75 in W x 6.22 in D |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 5000000 |
| Operating Temperature: | -4 to 104 deg F |
| Size: | S4 |
| Terminal Type: | Box Lug/Screw |
| Type: | 3-Phase 3-Wire Class 43 Full Voltage Heavy Duty Magnetic Non-Combination Reversing |
| Wattage: | 510 VA Pickup, 51 VA Holding |
| Country of origin: | MX |
| Mounting type: | Surface |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00783087637887 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 43JG32AA
Brand: Siemens
Part Number: 43JG32AA
Siemens NEMA Contactor, 3-Phase 3-Wire Class 43 Full Voltage Heavy Duty Magnetic Non-Combination Reversing, 110 VAC, 190 to 220 VAC, 110 to 120 VAC, 220 to 240 VAC Coil, 135 A Maximum Load Current, 22 W Coil Power Rating, 3 Poles, 50/60 Hz, 510 VA Pickup, 51 VA Holding, 3NO, 2NO-2NC Auxiliary Contacts, 10 A at 600 VAC, 5 A at 600 VDC Contact, S4, Box Lug/Screw Terminal, Open, 5000000 Operating Cycles, -4 to 104 deg F Operating, Surface Mount, 8.5 in H x 12.75 in W x 6.22 in D
Additional Description: SIEM-43JG32AA CONTACTOR-REV,SZ4, 3PH,OPN,120V-240V
Catalog Description: Reversing NEMA contactor, Size 4, Three phase full voltage, Contactor amp rating 135A, 3 wire (NO aux included), 110-120/220-240VAC 60Hz coil, Non-combination type, Enclosure NEMA type (open), No enclosure
43JG32AA Item Features
- Dual voltage coil
- 110 VAC, 190 to 220 VAC at 50 Hz, 110 to 120 VAC, 220 to 240 VAC at 60 Hz coil voltage
43JG32AA Standards
UL 508|CSA 22.2 No. 14|NEMA ICS 2SKU #2458295Part Number #43JG32AAUNSPSC39121529UPC00783087637887

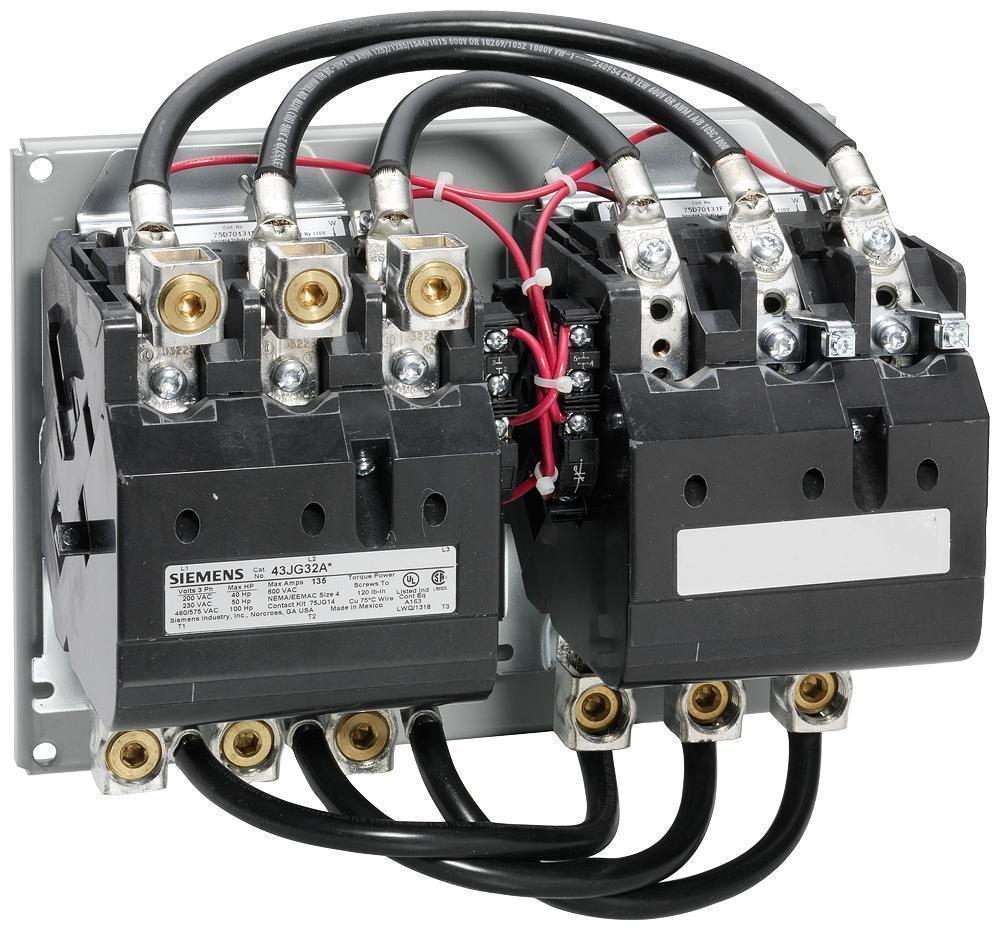

Image provided may only be a representation of final product and may include optional equipment
