Part Number # 4AM6142-5AJ10-0FA0
SKU # 2415778
4AM6142-5AJ10-0FA0
Siemens 4AM6142-5AJ10-0FA0 Control Transformer
Part Number # 4AM6142-5AJ10-0FA0
SKU # 2415778
Siemens 4AM6142-5AJ10-0FA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 4AM6142-5AJ10-0FA0 |
| SKU #: | 2415778 |
| Dimensions: | 0.164 m H x 0.176 m W x 0.138 m D |
| Efficiency: | 96 %, 96% |
| UNSPSC: | 39121029 |
| UPC: | 00754554968087 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 4AM6142-5AJ10-0FA0 Control Transformer
Brand: Siemens
Part Number: 4AM6142-5AJ10-0FA0
Siemens Control Transformer, Type 4AM EI Core Isolating, 400 VAC Primary, 110 VAC Secondary, 1.6 kVA Power, 50/60 Hz Frequency, 1 ph, Screw/Tab Terminal Connection, Threaded Mounting, Class B/130 deg C Insulation, IP00 Enclosure, 40 deg C, 96 % Efficiency, 0.164 m H x 0.176 m W x 0.138 m D Dimensions
Additional Description: SIEM-4AM6142-5AJ10-0FA0 (N) TRANSFORMER SITAS, PHASES 1 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: TRANSFORMER SITAS PHASES 1 PN/PN(S6)(KVA) 1,6 /7,3 UPRI(V) 400+/-5% USEC(V) 110ISEC(A) 14,5 F(HZ) 50...60 VECTOR GR./SHIELD WNG. II0 /0 TA/ISOKL 40 /B IP00 TYPE OF TERMINALS SCREW/TAB CONNECTION INSTALLATION SCREW EN 61558-2-1, -2-2, -2-4CONTROL CIRCUIT TRANSFORMER >ISOLATION TRANSFORMER
4AM6142-5AJ10-0FA0 Application
Industrial Machines, Process Engineering, Heating and Air Conditioning Equipment, Supplying Control and Signaling Circuit Applications4AM6142-5AJ10-0FA0 Item Features
- With electrically separated windings
- High short time rating of the SIRIUS transformers, lower transformer rated power for a large number of contactors
- Suitable for fuseless construction, the small inrush current means that circuit breakers for motor protection can also be used on the primary side
4AM6142-5AJ10-0FA0 Standards
cULus Recognized|IEC 61558|CSA Recognized|CE Certified|EAC Certified|PRS Certified|WEEE (2012/19/EU)SKU #2415778Part Number #4AM6142-5AJ10-0FA0UNSPSC39121029UPC00754554968087

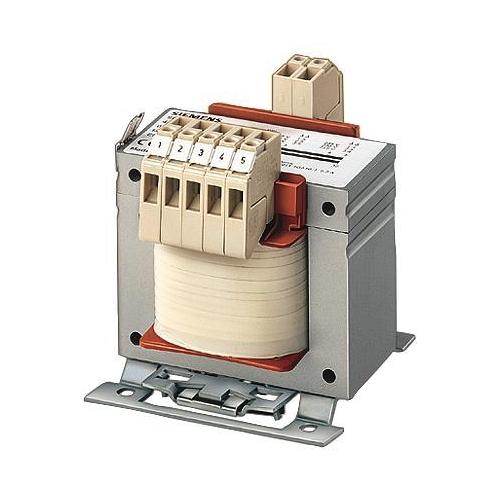

Image provided may only be a representation of final product and may include optional equipment
