Part Number # 52BP2G2AB
SKU # 2325842
Image Disclaimers Message
Brand: Siemens
52BP2G2AB

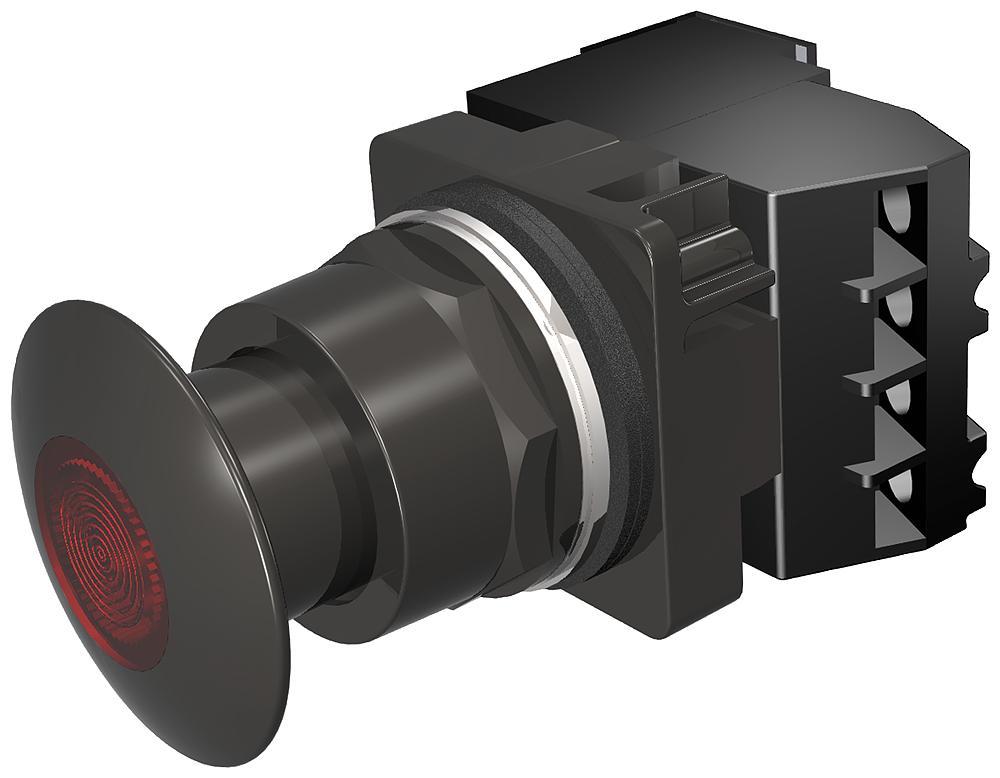

Siemens 52BP2G2AB Illuminated Push-Pull Switch
Part Number # 52BP2G2AB
SKU # 2325842
$197.23 / Each
Typical price:$354.00 / Each
Siemens 52BP2G2AB Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 52BP2G2AB |
| SKU #: | 2325842 |
| Actuator: | Push Button, Pushbutton |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Contact Rating: | 60 A at 120 VAC, 30 A at 240 VAC, 15 A at 480 VAC, 12 A at 600 VAC |
| Enclosure Type: | NEMA 1/3/3R/4/4X/12/13 |
| Environmental Conditions: | -31 to 158 Operating Temperature, 40 to 185 deg F Storage Temperature |
| Finish: | Epoxy Coated |
| Lamp Type: | LED |
| Number of Positions: | 2 |
| Operator Type: | Mushroom Head, Push-Pull Mushroom Head, Push-Pull/Mushroom Head |
| Size: | 30, 30 mm |
| Terminal Type: | Touchsafe |
| Type: | Class 52 transformer |
| Color: | Red |
| Country of origin: | MX |
| Material: | Metal |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122216 |
| UPC: | 00662643863017 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$197.23 / Each
Typical price:$354.00 / Each
Quantity:
- Siemens Illuminated Push-Pull Switch, Class 52 transformer, 30 mm Size, 1NO-1NC Contact Configuration, Maintained Contact Mode, 60 A at 120 VAC, 30 A at 240 VAC, 15 A at 480 VAC, 12 A at 600 VAC Contact, Mushroom Head Operator, 2 Positions, LED Lamp, Push Button Actuator, Touchsafe Terminal, NEMA 1/3/3R/4/4X/12/13 Enclosure, Metal, Epoxy Coated, Red, Environmental Conditions: -31 to 158 Operating Temperature, 40 to 185 deg F Storage Temperature
52BP2G2AB Application
Industrial Applications52BP2G2AB Item Features
- New modular design allowing for quick delivery, multiple distributor options and a full product line for the end user
- Lighting modules, operators and lens can be ordered fully assembled or independently depending on your applications
- Latest in illumination technology delivering traditional incandescent lights, energy saving LEDs and energy saving extra bright cluster LEDs
- New ribbed concentric lens providing improved lighting distribution and aesthetic appeal
- Less mounting space making Siemens new 30 mm smaller than ever
- Silver contacts with gold flashing improving contact fidelity of all our contact blocks
- BlackMax corrosion-resistant line withstanding the harshest environments
52BP2G2AB Standards
UL File No. E22655|CSA File No. LR6535|UL Listed|CSA Certified|Automotive Standard CompliantSKU #2325842Part Number #52BP2G2ABUNSPSC39122216UPC00662643863017
