52BR8ERA

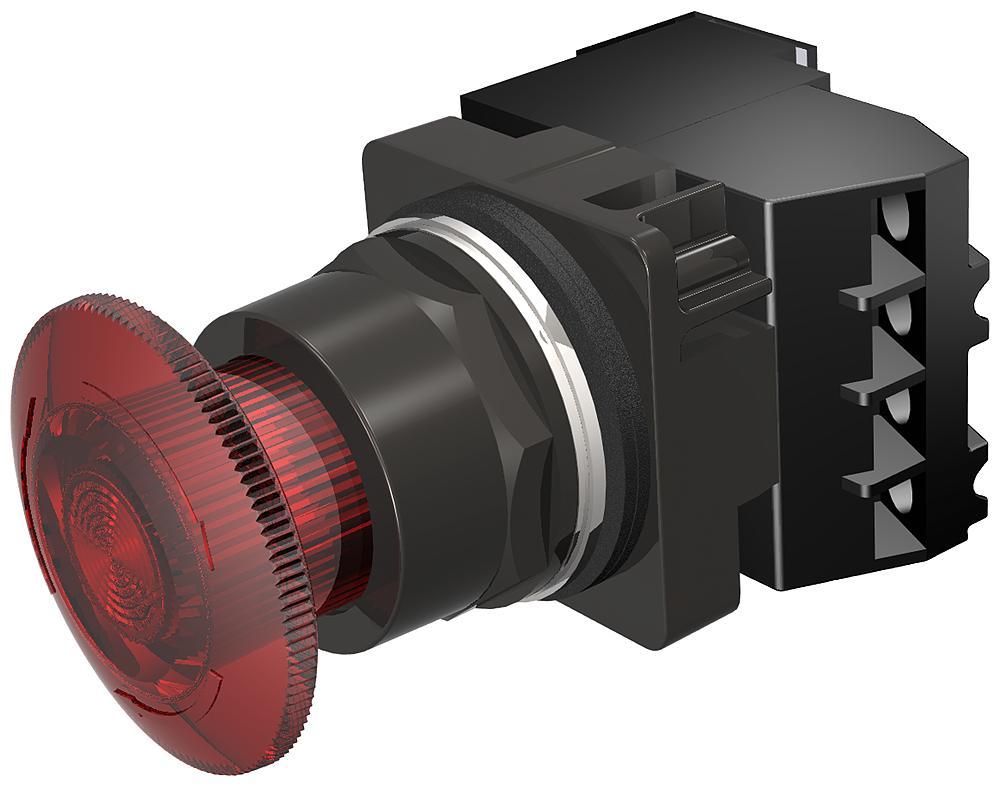

Siemens 52BR8ERA Illuminated Twist Release Switch
Part Number # 52BR8ERA
SKU # 2271814
Siemens 52BR8ERA Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 52BR8ERA |
| SKU #: | 2271814 |
| Type: | Corrosion-Resistant Full Voltage Oil/Watertight |
| UNSPSC: | 39122216 |
| UPC: | 00662643791297 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 52BR8ERA Illuminated Twist Release Switch
Brand: Siemens
Part Number: 52BR8ERA
Siemens, 52BR8ERA, Illuminated Twist Release Switch, Corrosion-Resistant Full Voltage Oil/Watertight, Series: Class 52, 30 mm Size, 1NO-1NC Contact Configuration, Maintained Contact, 2 Positions, Incandescent Lamp, Bezel/Housing: Die Cast Zinc, Mushroom Head Actuator, Touch Safe Screw Terminal, NEMA 1/3/3R/4/4X/12/13/IP10/IP11/IP14/IP52/IP54/IP56/IP66 Enclosure, Plastic, BlackMax, Black/Red, Environmental Conditions: 31 to 158 deg F Operating Temperature, 40 to 185 deg F Storage Temperature
Additional Description: SIEM-52BR8ERA PTR,NEMA4X,MTD,FV 120V,FULL RED,1NO-1NC
Catalog Description: PTR,NEMA4X,MTD,FV 120V,FULL RED,1NO-1NC
52BR8ERA Item Features
- Octagonal mounting nuts
- Heavy duty rated NEMA A600/P600 contacts
- Positively driven contacts
- Positive indexing selectors
- Bifurcated movable contacts
- Silver contacts carry heavy duty ratings
52BR8ERA Standards
UL File No. E22655|CSA File No. LR6535SKU #2271814Part Number #52BR8ERAUNSPSC39122216UPC00662643791297
Image provided may only be a representation of final product and may include optional equipment
