Part Number # 52BT6B2AB
SKU # 2459492
52BT6B2AB
Siemens 52BT6B2AB
Part Number # 52BT6B2AB
SKU # 2459492
$152.10 / Each
Typical price:$273.00 / Each
Siemens 52BT6B2AB Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 52BT6B2AB |
| SKU #: | 2459492 |
| Bezel/Housing: | Metal |
| Contact Configuration: | 1NO-1NC |
| Enclosure Type: | NEMA 1/3/3R/4/4X/12/13/IP20/IP66 |
| Environmental Conditions: | -31 to 158 deg F Operating, -40 to 185 deg F Storage |
| Finish: | BlackMax/Epoxy Coated |
| Lamp Type: | LED |
| Number of Positions: | 2 |
| Operator Type: | Extended |
| Size: | 30 mm |
| Terminal Type: | Screw |
| Type: | Class 52 Complete Corrosion-Resistant Full Voltage Heavy Duty Oil/Watertight Round |
| Material: | Plastic |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122216 |
| UPC: | 00662643873825 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$152.10 / Each
Typical price:$273.00 / Each
Quantity:

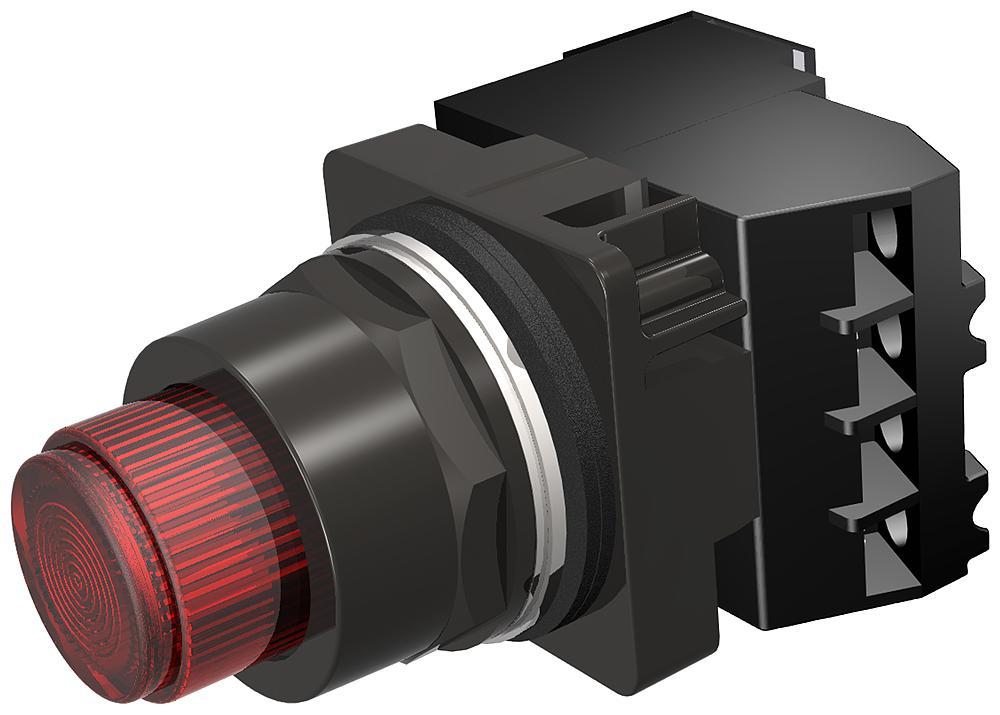

- Siemens, 52BT6B2AB, Illuminated Push-Pull Switch, Class 52 Complete Corrosion-Resistant Full Voltage Heavy Duty Oil/Watertight Round, 30 mm Size, 1NO-1NC Contact Configuration, Momentary Contact, Extended Operator, 2 Positions, LED Lamp, Bezel/Housing: Metal, Screw Terminal, NEMA 1/3/3R/4/4X/12/13/IP20/IP66 Enclosure, Plastic, BlackMax/Epoxy Coated, Black/Red, Environmental Conditions: -31 to 158 deg F Operating, -40 to 185 deg F Storage
52BT6B2AB Application
For providing long, trouble-free service in the most demanding industrial applications52BT6B2AB Item Features
- Octagonal mounting nuts
- Heavy duty rated NEMA A600/P600 contacts
- Positively driven contacts
- Bifurcated movable contacts
- Positive indexing selectors
- Boots not required for Type 4
- Touchsafe terminals
52BT6B2AB Standards
UL File No. E22655|CSA File No. LR6535|ECCN:EAR99|Automotive Standards CompliantSKU #2459492Part Number #52BT6B2ABUNSPSC39122216UPC00662643873825
Image provided may only be a representation of final product and may include optional equipment
