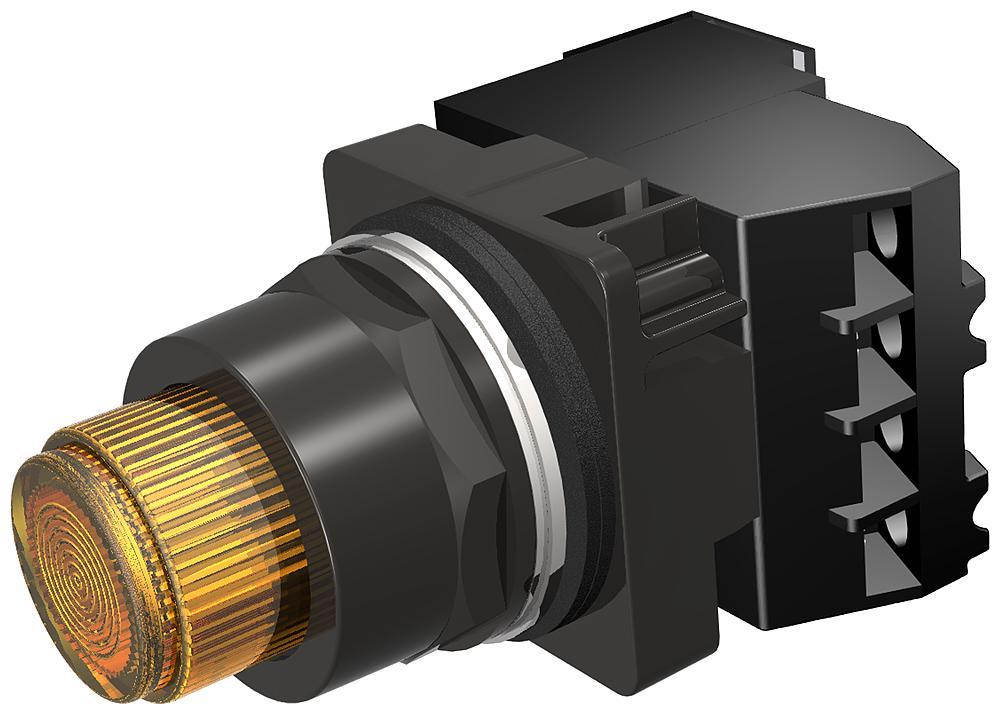

Siemens 52BT6H9AB Illuminated Pushbutton

2214604 MFG #: 52BT6H9AB
$209.45 / EA
Usually Ships within 5-8 Days
  • Actuator: Round Button
  • Bezel/Housing: Die Cast Zinc
  • Contact Configuration: 1NC-1NO, 1NO-1NC
  • Contact Rating: 60/12 A at 110/500 VAC
  • Enclosure Type: NEMA 1/3/3R/4/4X/12/13/IP20/IP66, NEMA 1/3/3R/4/4X/12/13/IP66/20
  • Environmental Conditions: -35 to 70
  • Finish: BlackMax
  • Lamp Type: LED
  • Number of Positions: 2
  • Series: Command 52
  • Size: 30
  • Color: Amber
  • Connection type: Thread, Threaded
  • Material: Metal

Siemens 52BT6H9AB Illuminated Pushbutton

Siemens Illuminated Pushbutton, Series: Command 52, 30 mm Size, 1NC-1NO Contact Configuration, Momentary Contact Mode, 60/12 A at 110/500 VAC Contact, 2 Positions, LED Lamp, Bezel/Housing: Die Cast Zinc, Round Button Actuator, Thread Connection, NEMA 1/3/3R/4/4X/12/13/IP20/IP66 Enclosure, Metal, BlackMax, Amber, Environmental Conditions: -35 to 70 deg C

Additional Description: SIEM-52BT6H9AB PTT/ILL PB,NMA4X,XFMR,240V,AMB,NO-NC,LED

Catalog Description: PTT/ILL PB,NMA4X,XFMR,240V,AMB,NO-NC,LED

  • Specifications
  • Octagonal mounting nuts
  • Heavy duty contacts
  • 60/12 A at 110/500 VAC AC-15
  • Positive indexing selectors
  • Bifurcated movable contacts
  • Touch safe terminals
  • 240 VAC LED lamp
  • Transformer type
  • NEMA contact rating designation A600/P600
  • Black epoxy coated zinc die cast bezel
  • Plastic lens
