Part Number # 52PP2E2A
SKU # 2377257
Image Disclaimers Message
52PP2E2A

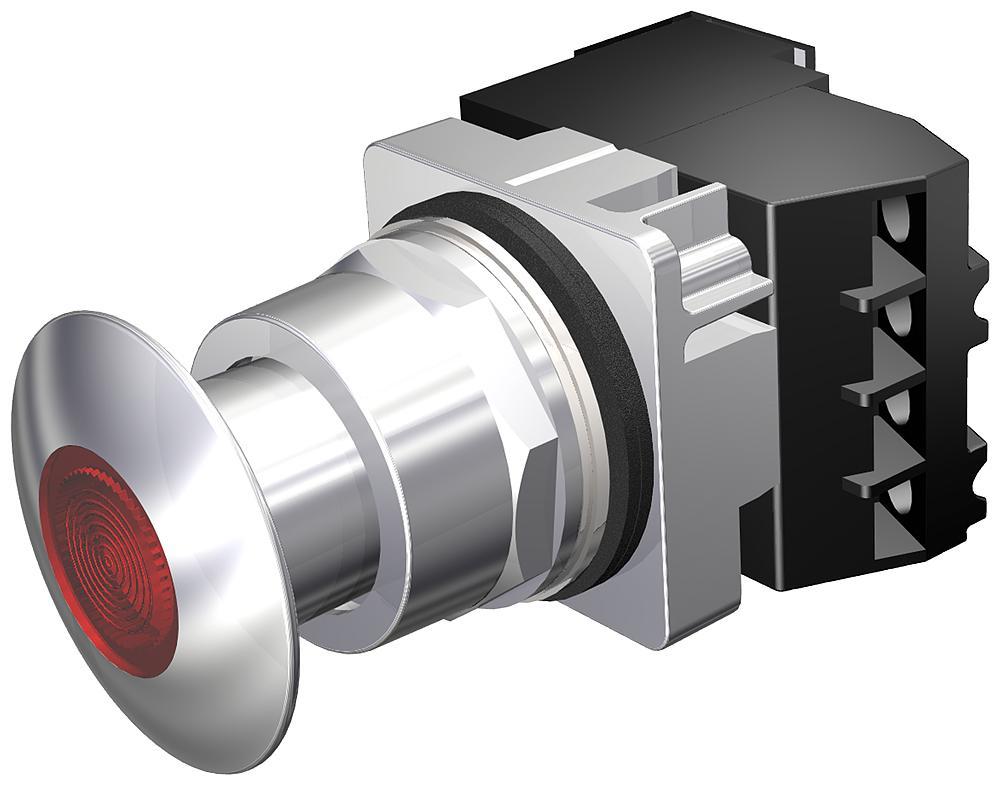

Siemens 52PP2E2A Illuminated Push-Pull Switch
Part Number # 52PP2E2A
SKU # 2377257
$156.86 / Each
Typical price:$305.00 / Each
Siemens 52PP2E2A Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 52PP2E2A |
| SKU #: | 2377257 |
| Actuator: | Pull-Release/Pull-Unlatch |
| Bezel/Housing: | Metal |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Contact Rating: | 60 A at 110 V AC, 30 A at 230 V AC, 15 A at 400 V AC, 12 A at 500 V AC, 60 A at 110 VAC, 30 A at 230 VAC, 15 A at 400 VAC, 12 A at 500 VAC |
| Enclosure Type: | NEMA 1/3/3R/4/4X/12/13/IP20/IP66 |
| Environmental Conditions: | -31 to 158 deg F Operating, -40 to 185 deg F Storage |
| Finish: | Polished Chrome |
| Lamp Type: | Incandescent |
| Number of Positions: | 2 |
| Operator Type: | 44.5 mm Mushroom Head |
| Series: | Command 52 |
| Size: | 30, 30 mm |
| Terminal Type: | Screw |
| Type: | Class 52 Complete Corrosion-Resistant Full Voltage Heavy Duty Oil/Watertight Round |
| Color: | Red |
| Country of origin: | MX |
| Material: | Metal |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122216 |
| UPC: | 00662643876338 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$156.86 / Each
Typical price:$305.00 / Each
Quantity:
- Siemens Illuminated Push-Pull Switch, Class 52 Complete Corrosion-Resistant Full Voltage Heavy Duty Oil/Watertight Round, Series: Command 52, 30 mm Size, 1NO-1NC Contact Configuration, Maintained Contact Mode, 60 A at 110 V AC, 30 A at 230 V AC, 15 A at 400 V AC, 12 A at 500 V AC Contact, 44.5 mm Mushroom Head Operator, 2 Positions, Incandescent Lamp, Bezel/Housing: Metal, Pull-Release/Pull-Unlatch Actuator, Screw Terminal, NEMA 1/3/3R/4/4X/12/13/IP20/IP66 Enclosure, Metal, Polished Chrome, Red, Environmental Conditions: -31 to 158 deg F Operating, -40 to 185 deg F Storage
52PP2E2A Application
For providing long, trouble-free service in the most demanding industrial applications52PP2E2A Item Features
- Octagonal mounting nuts
- Heavy duty rated NEMA A600/P600 contacts
- Positively driven contacts
- Bifurcated movable contacts
- Positive indexing selectors
- Boots not required for Type 4
- Touchsafe terminals
52PP2E2A Standards
UL File No. E22655|CSA File No. LR6535|IEC 529|ECCN:EAR99|Automotive Standards CompliantSKU #2377257Part Number #52PP2E2AUNSPSC39122216UPC00662643876338
