Part Number # 52PP2V2A
SKU # 2354568
Image provided may only be a representation of
final product and may include optional equipment
52PP2V2A

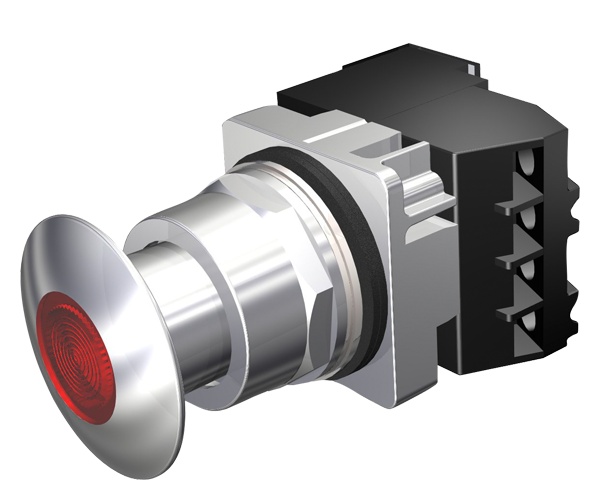

Siemens 52PP2V2A Push-Pull Operator
Part Number # 52PP2V2A
SKU # 2354568
Siemens 52PP2V2A Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 52PP2V2A |
| SKU #: | 2354568 |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Enclosure Type: | NEMA 1/3/3R/4/4X/12/13/IP20/IP66 |
| Finish: | Polished Chrome |
| Number of Positions: | 2 |
| Operator Type: | Mushroom Head Cap/Pull Release |
| Temperature Rating (Degrees F): | -35 to 70, -35 to 70 deg C |
| Terminal Type: | Screw |
| Type: | Heavy Duty/Watertight/Oiltight/Non-Illuminated |
| Country of origin: | MX |
| Material: | Metal |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122216 |
| UPC: | 00662643314755 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 52PP2V2A Push-Pull Operator
Brand: Siemens
Part Number: 52PP2V2A
Siemens Push-Pull Operator, Heavy Duty/Watertight/Oiltight/Non-Illuminated, 1NC-1NO Contact Configuration, Maintained Contact Mode, 2 Positions, Mushroom Head Cap/Pull Release Operator, 600 VAC, NEMA 1/3/3R/4/4X/12/13/IP20/IP66 Enclosure, Screw Terminal, -35 to 70 deg C, Metal, Polished Chrome, Red
Additional Description: SIEM-52PP2V2A PUSHBUTTON,MTD,RED,2 1/2"" PLASTIC,2POS PLASTIC,2POS""
Catalog Description: 30mm command/52, chrome finish heavy duty,watertight/oiltight complete metal unit push-pull operator non-illuminated mushroom head cap large 2 1/2 (63.5 mm) plastic, red 2 position maintained, pull-to-release with 1 n.o. - 1 n.c. heavy duty contact
52PP2V2A Item Features
- Pull-to-unlatch mechanism actuator
- Plastic actuator
- Metal front ring
- -40 to 85 deg C storage temperature
52PP2V2A Standards
CSA Certified|UL ListedSKU #2354568Part Number #52PP2V2AUNSPSC39122216UPC00662643314755
