Brand: Siemens

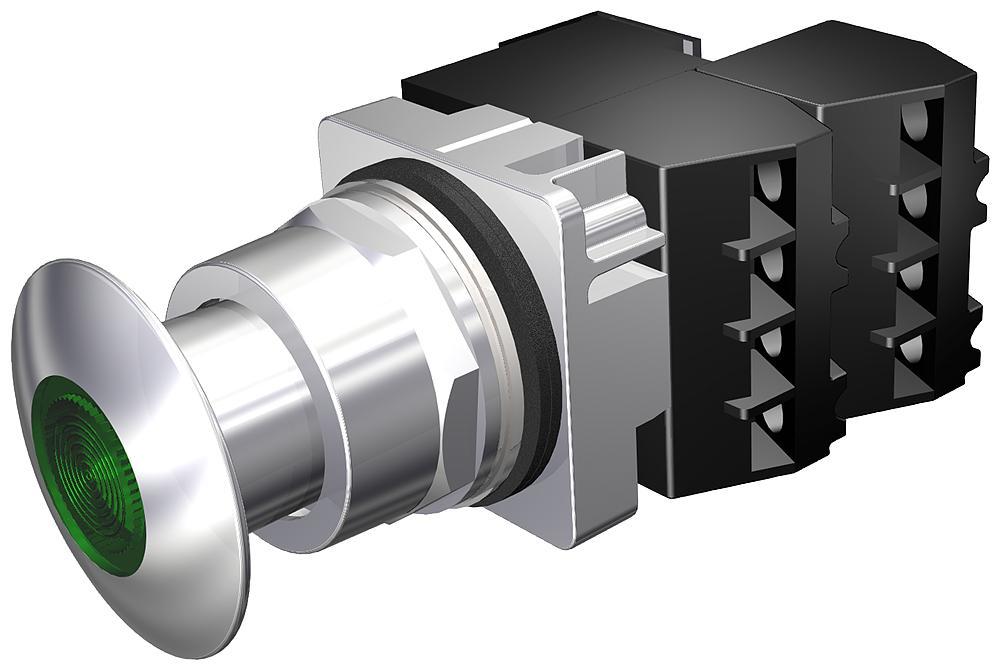

Siemens 52PP3G3UB Class 52 transformer Illuminated Push-Pull Switch
Image Disclaimers Message
Brand: Siemens
Siemens 52PP3G3UB Class 52 transformer Illuminated Push-Pull Switch
Brand: Siemens
Siemens 52PP3G3UB Class 52 transformer Illuminated Push-Pull Switch
Part #:52PP3G3UB
SKU #: 2386835
$168.69/EA
Key Features
Part #:52PP3G3UB
SKU #: 2386835
Brand: Siemens
Actuator: Push Button
Contact Configuration: 1NC-1NO
Contact Rating: 60 A at 120 VAC, 30 A at 240 VAC, 15 A at 480 VAC, 12 A at 600 VAC
Enclosure Type: NEMA 1/3/3R/4/4X/12/13/IP20/IP66
Environmental Conditions: -31 to 158 Operating Temperature, 40 to 185 deg F Storage Temperature
$168.69/EA
- New modular design allowing for quick delivery, multiple distributor options and a full product line for the end user
- Lighting modules, operators and lens can be ordered fully assembled or independently depending on your applications
- Latest in illumination technology delivering traditional incandescent lights, energy saving LEDs and energy saving extra bright cluster LEDs
- New ribbed concentric lens providing improved lighting distribution and aesthetic appeal
- Less mounting space making Siemens new 30 mm smaller than ever
- Silver contacts with gold flashing improving contact fidelity of all our contact blocks
Specifications
Brand: Siemens
Actuator: Push Button
Contact Configuration: 1NC-1NO
Contact Rating: 60 A at 120 VAC, 30 A at 240 VAC, 15 A at 480 VAC, 12 A at 600 VAC
Enclosure Type: NEMA 1/3/3R/4/4X/12/13/IP20/IP66
Environmental Conditions: -31 to 158 Operating Temperature, 40 to 185 deg F Storage Temperature
Finish: Polished Chrome
Lamp Type: LED
Number of Positions: 3
Operator Type: Push-Pull/Mushroom Head
Size: 30 mm
Terminal Type: Touch Safe Screw
Type: Class 52 transformer
Color: Green
Contact type: Extra Late Break/Heavy Duty
Country of origin: MX
Material: Metal
Manufacturer Name: Siemens
UNSPSC: 39122216
UPC: 00662643854503
Item FeaturesIndustrial Applications
Item Features
Item FeaturesUL File No. E22655|CSA File No. LR6535|UL Listed|CSA Certified|Automotive Standard Compliant
