52PR8DRA

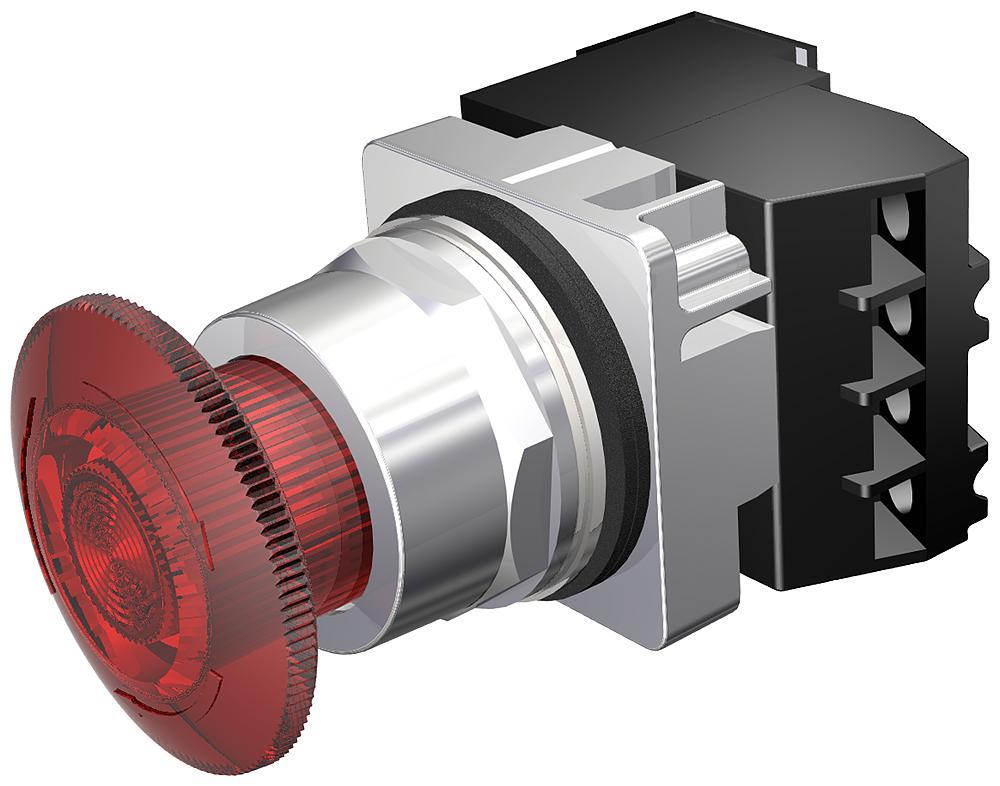

Siemens 52PR8DRA Illuminated Twist Release Switch
Part Number # 52PR8DRA
SKU # 2354142
Siemens 52PR8DRA Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 52PR8DRA |
| SKU #: | 2354142 |
| Actuator: | Mushroom Head |
| Bezel/Housing: | Die Cast Zinc |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Enclosure Type: | NEMA 1/3/3R/4/4X/12/13/IP10/IP11/IP14/IP52/IP54/IP56/IP66 |
| Environmental Conditions: | 31 to 158 deg F Operating Temperature, 40 to 185 deg F Storage Temperature |
| Finish: | Polished Chrome |
| Lamp Type: | Incandescent |
| Number of Positions: | 2 |
| Series: | Class 52/Command 52 |
| Size: | 30, 30 mm |
| Terminal Type: | Touch Safe Screw |
| Type: | Corrosion-Resistant Full Voltage Oil/Watertight |
| Color: | Black/Red |
| Country of origin: | MX |
| Material: | Plastic |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122216 |
| UPC: | 00662643791235 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 52PR8DRA Illuminated Twist Release Switch
Brand: Siemens
Part Number: 52PR8DRA
Siemens Illuminated Twist Release Switch, Corrosion-Resistant Full Voltage Oil/Watertight, Series: Class 52/Command 52, 30 mm Size, 1NC-1NO Contact Configuration, Silver Contact, Maintained Contact Mode, 2 Positions, Incandescent Lamp, Bezel/Housing: Die Cast Zinc, Mushroom Head Actuator, Touch Safe Screw Terminal, NEMA 1/3/3R/4/4X/12/13/IP10/IP11/IP14/IP52/IP54/IP56/IP66 Enclosure, Plastic, Polished Chrome, Black/Red, Environmental Conditions: 31 to 158 deg F Operating Temperature, 40 to 185 de
Additional Description: SIEM-52PR8DRA PTR,MTD,FV 24V,FULL ILL RED,1NO-1NC
Catalog Description: PTR,MTD,FV 24V,FULL ILL RED,1NO-1NC
52PR8DRA Item Features
- Octagonal mounting nuts
- Heavy duty rated NEMA A600/P600 contacts
- Positively driven contacts
- Positive indexing selectors
- Bifurcated movable contacts
- Silver contacts carry heavy duty ratings
52PR8DRA Standards
UL File No. E22655|CSA File No. LR6535SKU #2354142Part Number #52PR8DRAUNSPSC39122216UPC00662643791235
