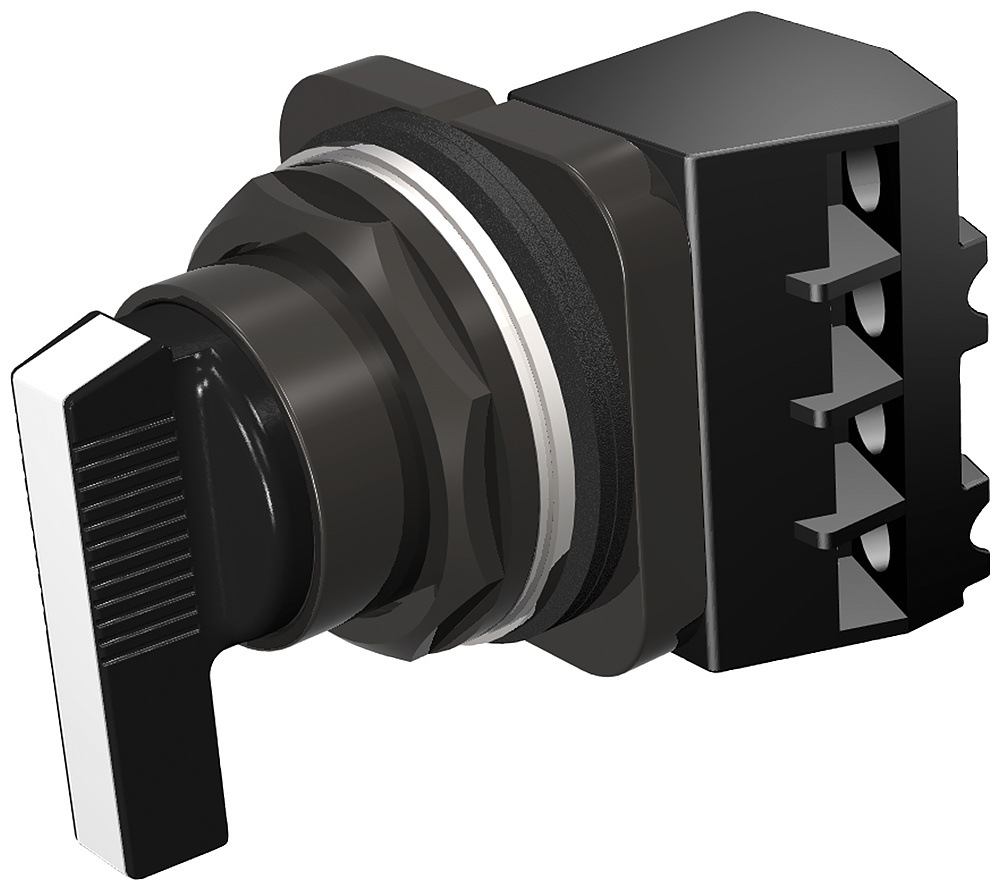

Siemens 52SW2CABA1 Non-Illuminated Selector Switch
Part Number # 52SW2CABA1
SKU # 2311238
Siemens 52SW2CABA1 Key Features
Siemens 52SW2CABA1 Non-Illuminated Selector Switch
Brand: Siemens
Part Number: 52SW2CABA1
Siemens Non-Illuminated Selector Switch, Corrosion-Resistant Oil/Watertight, Series: Class 52, 30 mm Size, 1NC-1NO Contact Configuration, Silver Contact, Maintained Contact Mode, 60 A at 110 VAC, 30 A at 230 VAC, 15 A at 400 VAC, 12 A at 500 VAC Contact, 3 Positions, Cam Code: C, Bezel/Housing: Metal, Long Lever Actuator, Touch Safe Screw Terminal, NEMA 1/3/3R/4/4X/12/13/IP10/IP11/IP14/IP52/IP54/IP56/IP66 Enclosure, Metal/Plastic, BlackMax, Black/White, Environmental Conditions: 31 to 158 deg F
Additional Description: SIEM-52SW2CABA1 SEL SWITCH,MNTD,WHT INS,LNG LVR,3POS
Catalog Description: Selector Switch, Metal, NEMA 4X Maintained Long Lever, C Cam 1NO-1NC left, right 3 position Complete Device White Insert Non-Illuminated UL File E22655 in Vol.6 (7) Sec. 13 (2)
52SW2CABA1 Item Features
- Octagonal mounting nuts
- Heavy duty rated NEMA A600/P600 contacts
- Positively driven contacts
- Positive indexing selectors
- Bifurcated movable contacts
- Silver contacts carry heavy duty ratings
52SW2CABA1 Standards
UL File No. E22655|CSA File No. LR6535SKU #2311238Part Number #52SW2CABA1UNSPSC39122214UPC00783087153257
