Part Number # 52SW2CABA2
SKU # 2188631
Image Disclaimers Message
52SW2CABA2

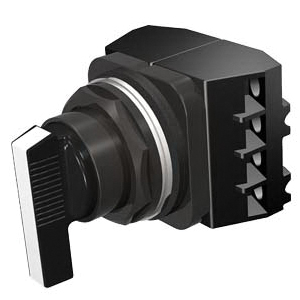

Siemens 52SW2CABA2 Non-Illuminated Selector Switch
Part Number # 52SW2CABA2
SKU # 2188631
$111.43 / Each
Typical price:$200.00 / Each
Siemens 52SW2CABA2 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 52SW2CABA2 |
| SKU #: | 2188631 |
| Actuator: | Rotary |
| Bezel/Housing: | Metal, Metallic Bezel |
| Cam Code: | C |
| Contact Configuration: | 2NO-2NC |
| Contact Rating: | 60 A at 110 V AC/30 A at 230 V AC/15 A at 400 V AC/12 A at 500 V AC, 60 A at 110 VAC/30 A at 230 VAC/15 A at 400 VAC/12 A at 500 VAC, 60 A/12 A at 110/500 VAC |
| Enclosure Type: | NEMA 4X/IP20/IP66, NEMA 4X/IP66/20 |
| Environmental Conditions: | -35 to 70, -40 to 85 deg C Storage Temperature |
| Finish: | BlackMax |
| Number of Positions: | 3 |
| Operator Type: | Long Lever |
| Size: | 30, 30 mm |
| Terminal Type: | Screw |
| Throw: | Left to Right, Left-Center-Right |
| Type: | Class 52, Corrosion-Resistant Oiltight |
| Color: | White |
| Connection type: | Threaded |
| Country of origin: | MX |
| Material: | Metal |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122214 |
| UPC: | 00783087153264 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$111.43 / Each
Typical price:$200.00 / Each
Quantity:
- Siemens Non-Illuminated Selector Switch, Corrosion-Resistant Oiltight, 30 mm, 2NO-2NC, Maintained Contact Mode, 60 A at 110 V AC/30 A at 230 V AC/15 A at 400 V AC/12 A at 500 V AC Contact, Long Lever Operator, 3 Positions, Left to Right Throw, Cam Code: C, Bezel/Housing: Metal, Screw Terminal, NEMA 4X/IP20/IP66, Metal, BlackMax, White, Environmental Conditions: -40 to 85 deg C Storage Temperature
52SW2CABA2 Specifications
- Octagonal mounting nuts
- Contact block mount
- Heavy duty rated NEMA A600/P600 contact
- Positively driven contacts
- Positive indexing selectors
- Bifurcated movable contacts
- Boots not required for type 4
- Touch safe terminals
- White Insert
- 60 A/12 A at 110/500 VAC AC-15
52SW2CABA2 Standards
UL File No. E22655 in Vol. 6 (7) Section 13 (2)SKU #2188631Part Number #52SW2CABA2UNSPSC39122214UPC00783087153264
