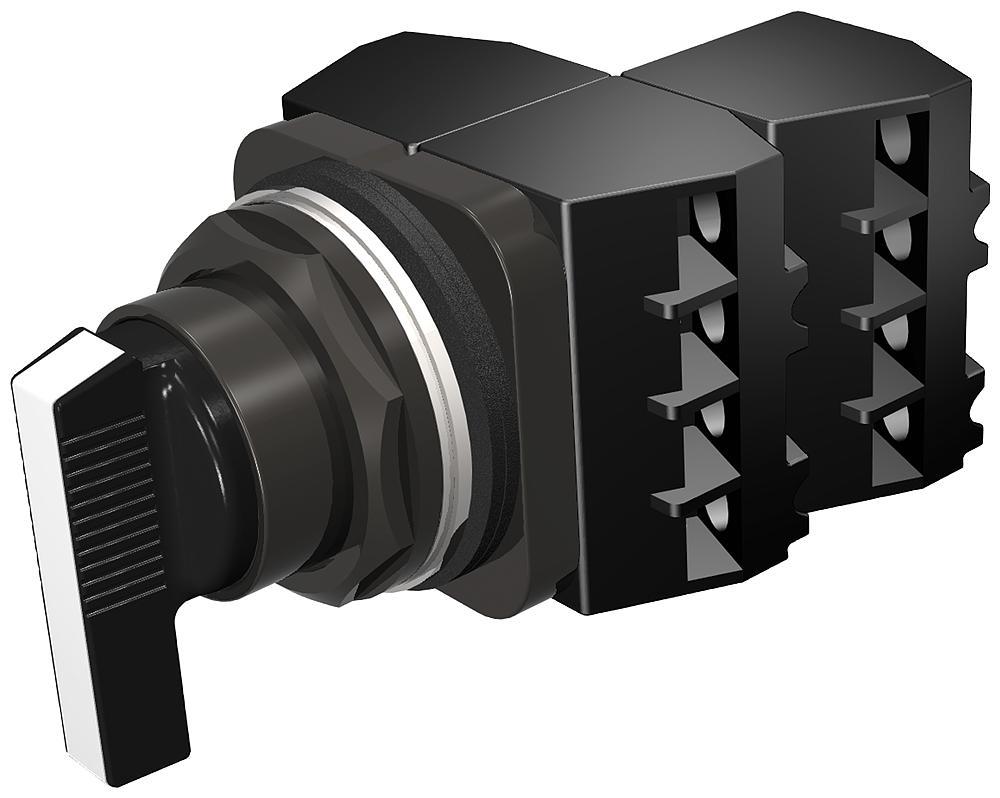

Siemens 52SW2GDBJ2K1 Non-Illuminated Selector Switch

2215413 MFG #: 52SW2GDBJ2K1
$141.25 / EA
Usually Ships within 5-8 Days
  • Actuator: Long Lever
  • Bezel/Housing: Metal
  • Cam Code: G
  • Contact Configuration: 1NC
  • Enclosure Type: NEMA 1/3/3R/4/4X/12/13/IP10/IP11/IP14/IP52/IP54/IP56/IP66
  • Environmental Conditions: 31 to 158 deg F Operating Temperature, 40 to 185 deg F Storage Temperature
  • Finish: BlackMax
  • Number of Positions: 3
  • Series: Class 52
  • Size: 30
  • Terminal Type: Touch Safe Screw
  • Type: Corrosion-Resistant Oil/Watertight
  • Color: Black/White
  • Contact type: Silver

Siemens 52SW2GDBJ2K1 Non-Illuminated Selector Switch

Siemens Non-Illuminated Selector Switch, Corrosion-Resistant Oil/Watertight, Series: Class 52, 30 mm, 1NC, Silver Contact, Spring Return Contact Mode, 3 Positions, Cam Code: G, Bezel/Housing: Metal, Long Lever, Touch Safe Screw Terminal, NEMA 1/3/3R/4/4X/12/13/IP10/IP11/IP14/IP52/IP54/IP56/IP66, BlackMax, Black/White, Environmental Conditions: 31 to 158 deg F Operating Temperature, 40 to 185 deg F Storage Temperature

Additional Description: SIEM-52SW2GDBJ2K1 SEL SWITCH, RET L & R,LNG LVR,3POS LVR,3POS

Catalog Description: Selector Switch, Metal, NEMA 4X Spring return left ( & ) right Long Lever, G Cam 1NC + 1NO left, 1NC Right 3 position Complete Device White Insert Non-Illuminated UL File E22655 in Vol. 6 (7) Sec. 13 (2)

  • Specifications
  • Octagonal mounting nuts
  • Heavy duty rated NEMA A600/P600 contacts
  • Positively driven contacts
  • Positive indexing selectors
  • Bifurcated movable contacts
  • Silver contacts carry heavy duty ratings
